Product Details

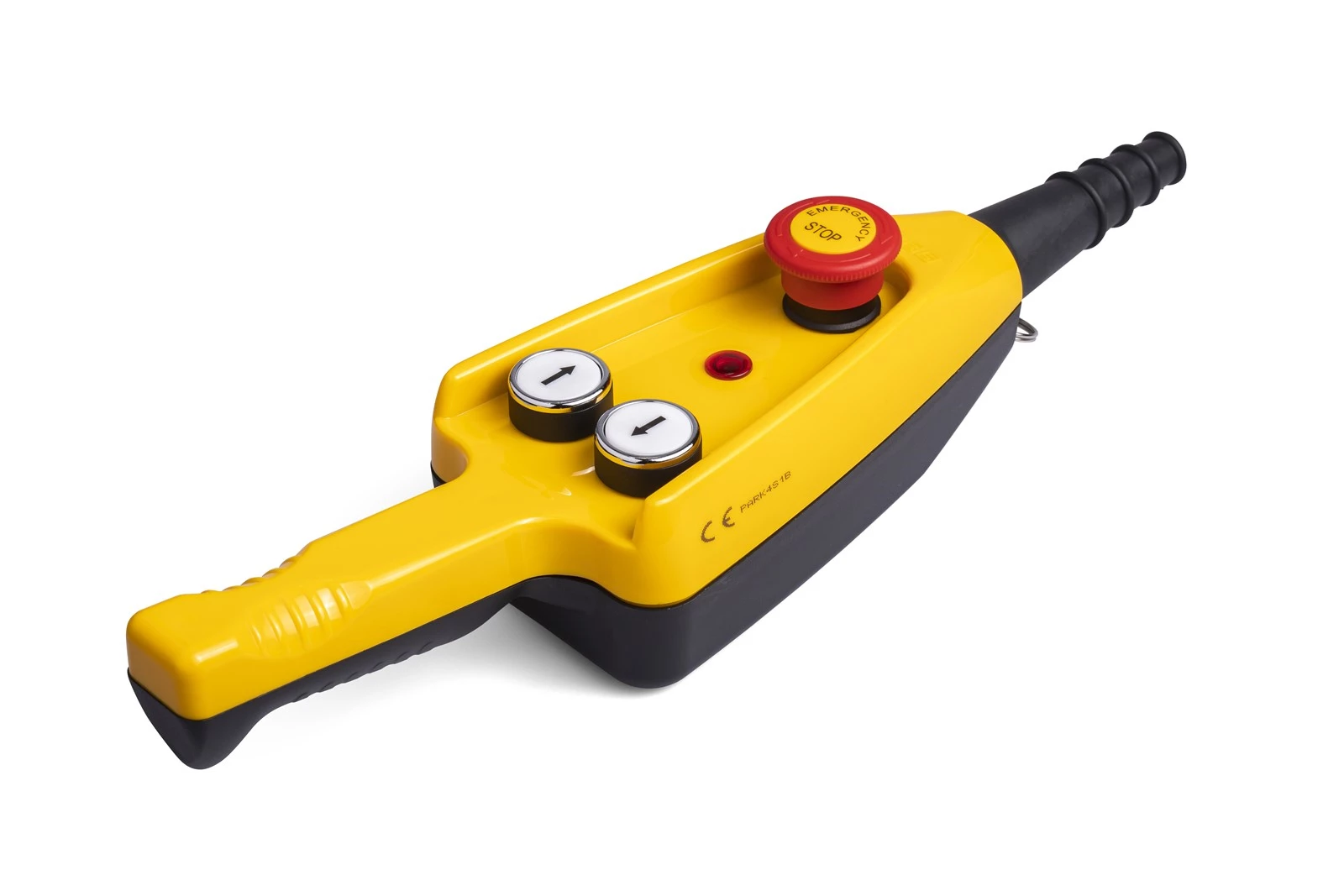

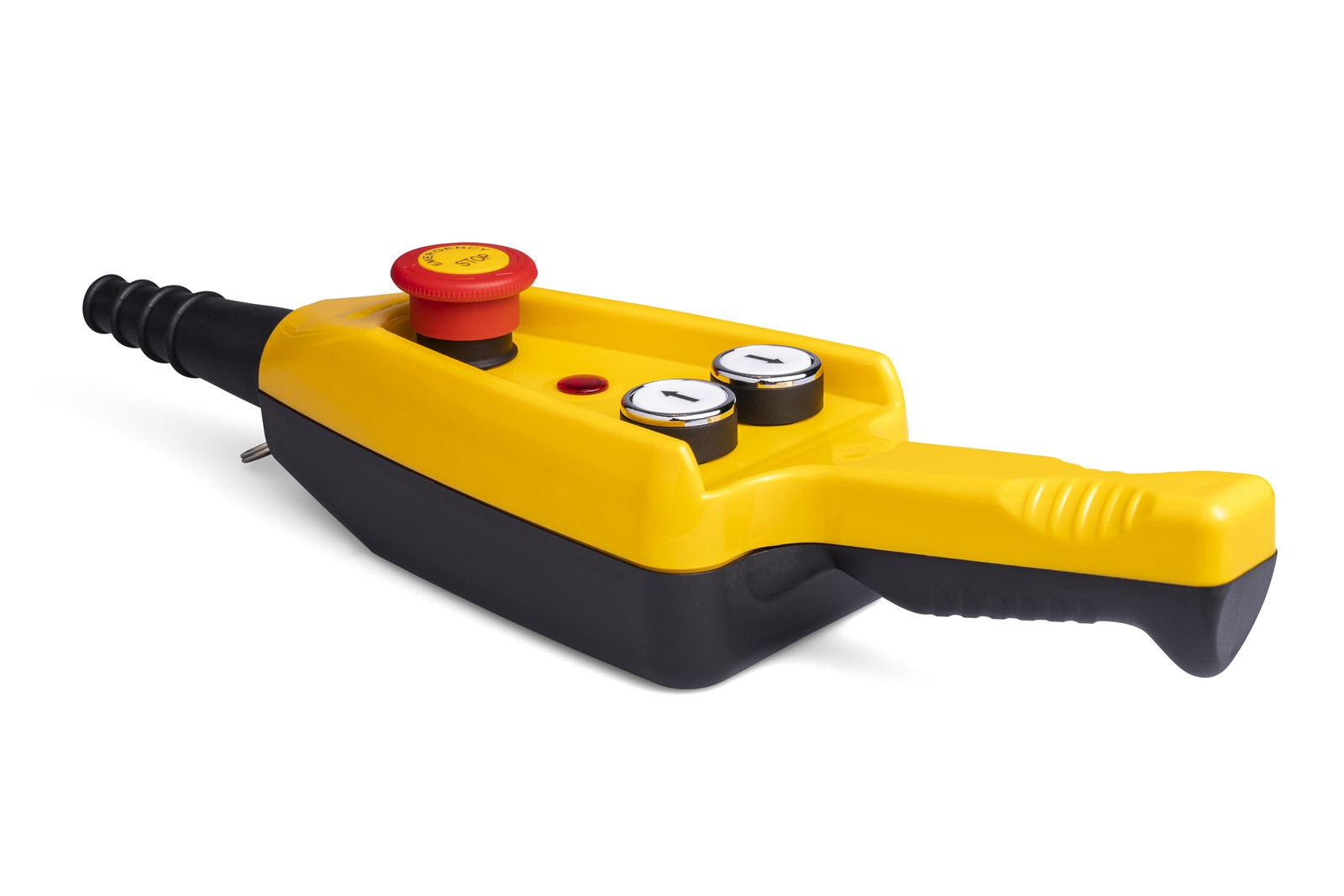

PARK Series 4 Holes B102DBOD + B102DBOD + B200EE + S100K Yellow-Black Lift Station PARK Series 4 Holes B102DBOD + B102DBOD + B200EE + S100K Yellow-Black Lift Station

PARK Series 4 Holes B102DBOD + B102DBOD + B200EE + S100K Yellow-Black Lift Station

Product Code
PARK4SIB
Standard
TS EN 60947-5-1 UL 508 VDE 0660
Certificate
CE EAC SEPRO
Downloads
  • Suitable for Ø22 mm control units
  • Aesthetic, durable and ergonomic design
PARK Series 4 Holes B102DBOD + B102DBOD + B200EE + S100K Yellow-Black Lift Station
PARK Series 4 Holes B102DBOD + B102DBOD + B200EE + S100K Yellow-Black Lift Station
Product
Lift Station
Color
Yellow-Black
Current (Ie)
4A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
1000000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1200
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ (500 V DC)
Operating Temperature
-15 / + 80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1.5-2.5 mm2
Screw Torque
1.5Nm
Short Circuit Breaking Capacity (Ics)
1kA
Serial
PARK Series
Hole Qty
4 Holes
Ingredients
B102DBOD + B102DBOD + B200EE + S100K
