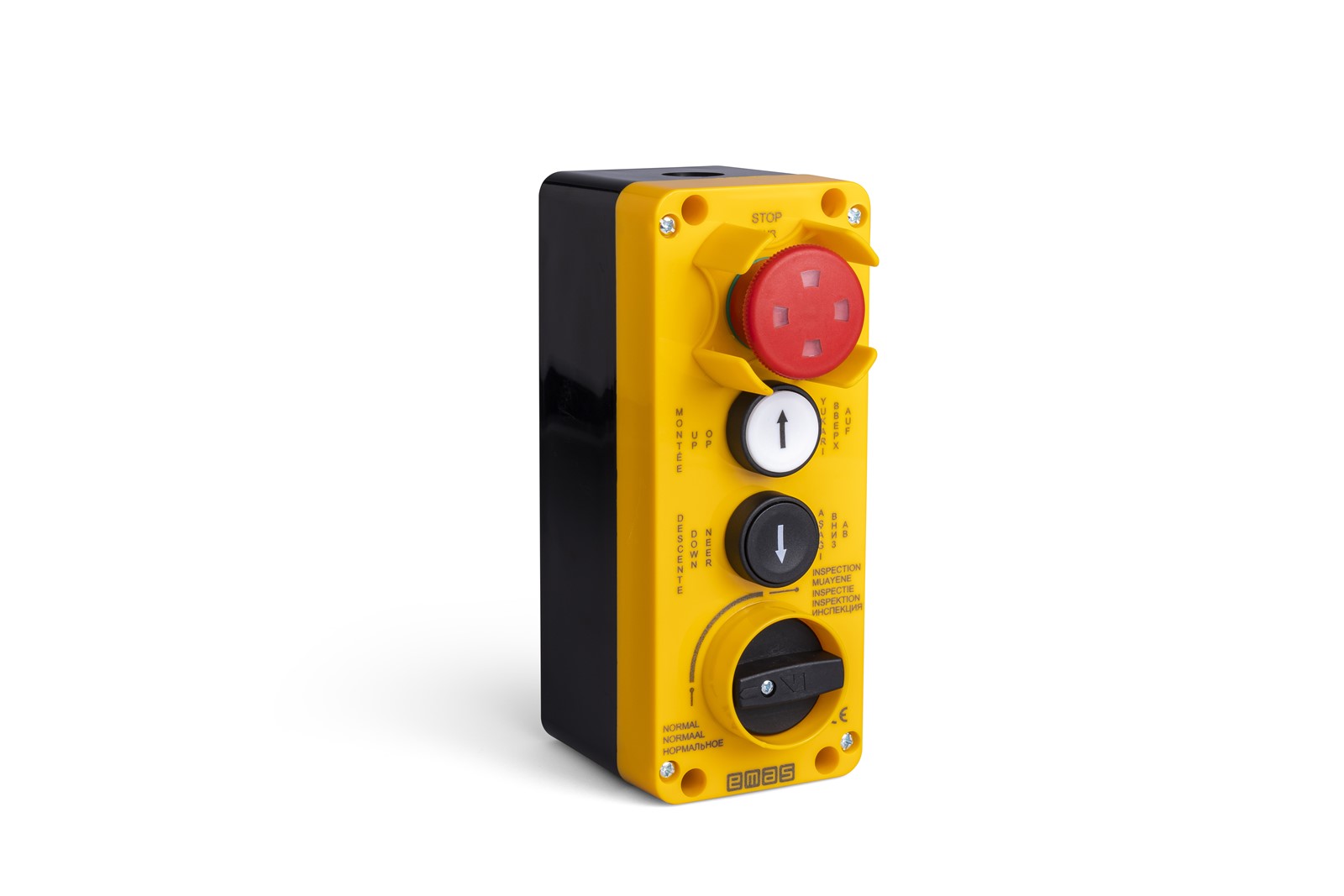

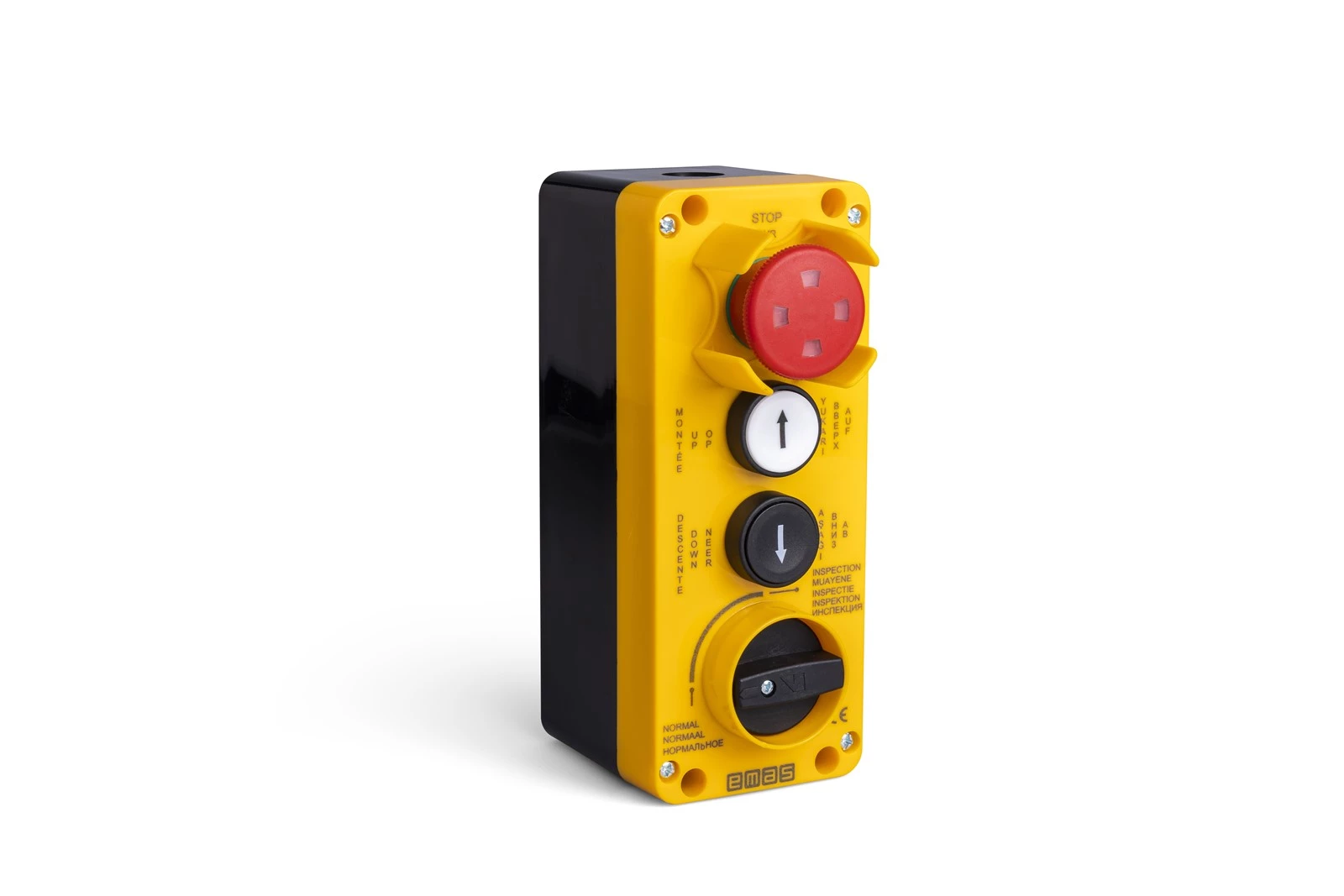

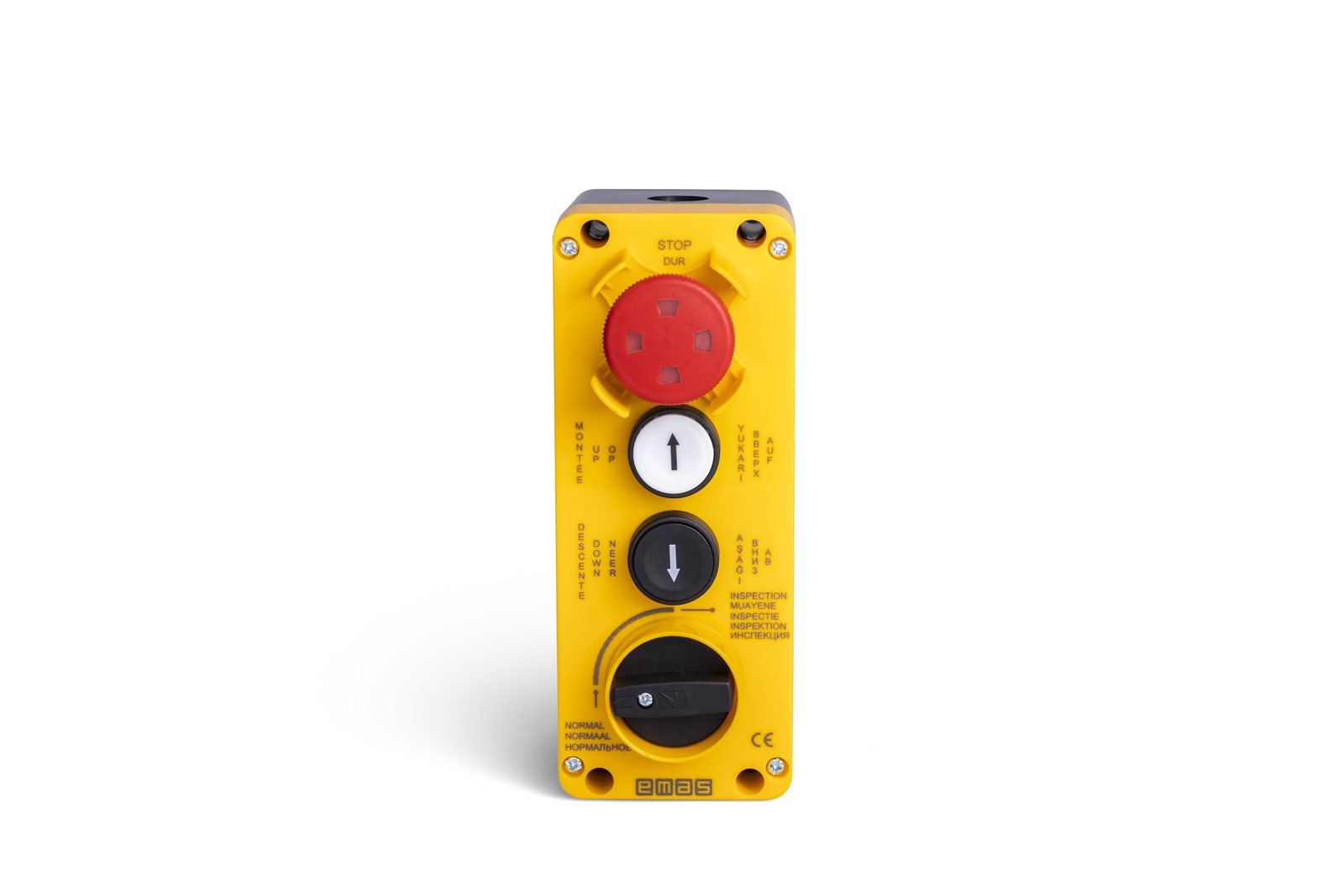

  5. PA Series 4 Holes CP200EP + CMUHAFAZA + CP101DBOY + CP101DHOY + PSA020ZA332AR Yellow-Black Lift Station

Product Details



PA Series 4 Holes CP200EP + CMUHAFAZA + CP101DBOY + CP101DHOY + PSA020ZA332AR Yellow-Black Lift Station PA Series 4 Holes CP200EP + CMUHAFAZA + CP101DBOY + CP101DHOY + PSA020ZA332AR Yellow-Black Lift Station

PA Series 4 Holes CP200EP + CMUHAFAZA + CP101DBOY + CP101DHOY + PSA020ZA332AR Yellow-Black Lift Station

Product Code
PA4445
Standard
TS EN 60947-5-1 UL 508 VDE 0660
Certificate
CE EAC SEPRO
Downloads
  • Suitable for Ø22 mm control units
  • Aesthetic, durable and ergonomic design
PA Series 4 Holes CP200EP + CMUHAFAZA + CP101DBOY + CP101DHOY + PSA020ZA332AR Yellow-Black Lift Station
PA Series 4 Holes CP200EP + CMUHAFAZA + CP101DBOY + CP101DHOY + PSA020ZA332AR Yellow-Black Lift Station
Product
Lift Station
Color
Yellow-Black
Current (Ie)
4A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
1000000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1200
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ (500 V DC)
Operating Temperature
-15 / + 80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1-2.5 mm2
Screw Torque
0,8Nm
Short Circuit Breaking Capacity (Ics)
1kA
Serial
PA Series
Hole Qty
4 Holes
Ingredients
CP200EP + CMUHAFAZA + CP101DBOY + CP101DHOY + PSA020ZA332AR
