Product Details



RE2 Series 2CO 8Pin 8A PCB 3.5x0.8mm FP 48VDC AgNi 90/10 5mm Pin Pitch PCB Power Relay RE2 Series 2CO 8Pin 8A PCB 3.5x0.8mm FP 48VDC AgNi 90/10 5mm Pin Pitch PCB Power Relay RE2 Series 2CO 8Pin 8A PCB 3.5x0.8mm FP 48VDC AgNi 90/10 5mm Pin Pitch PCB Power Relay

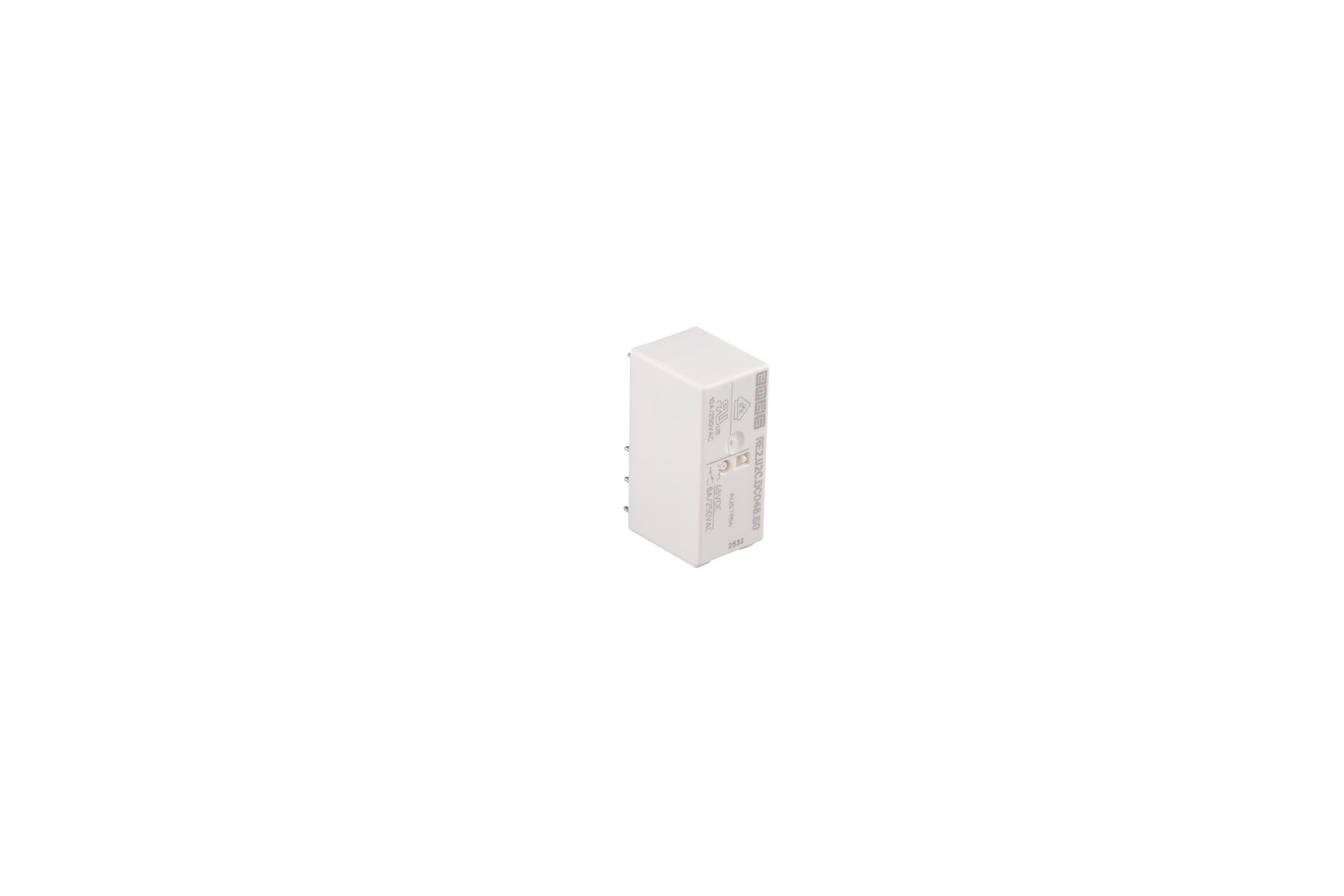

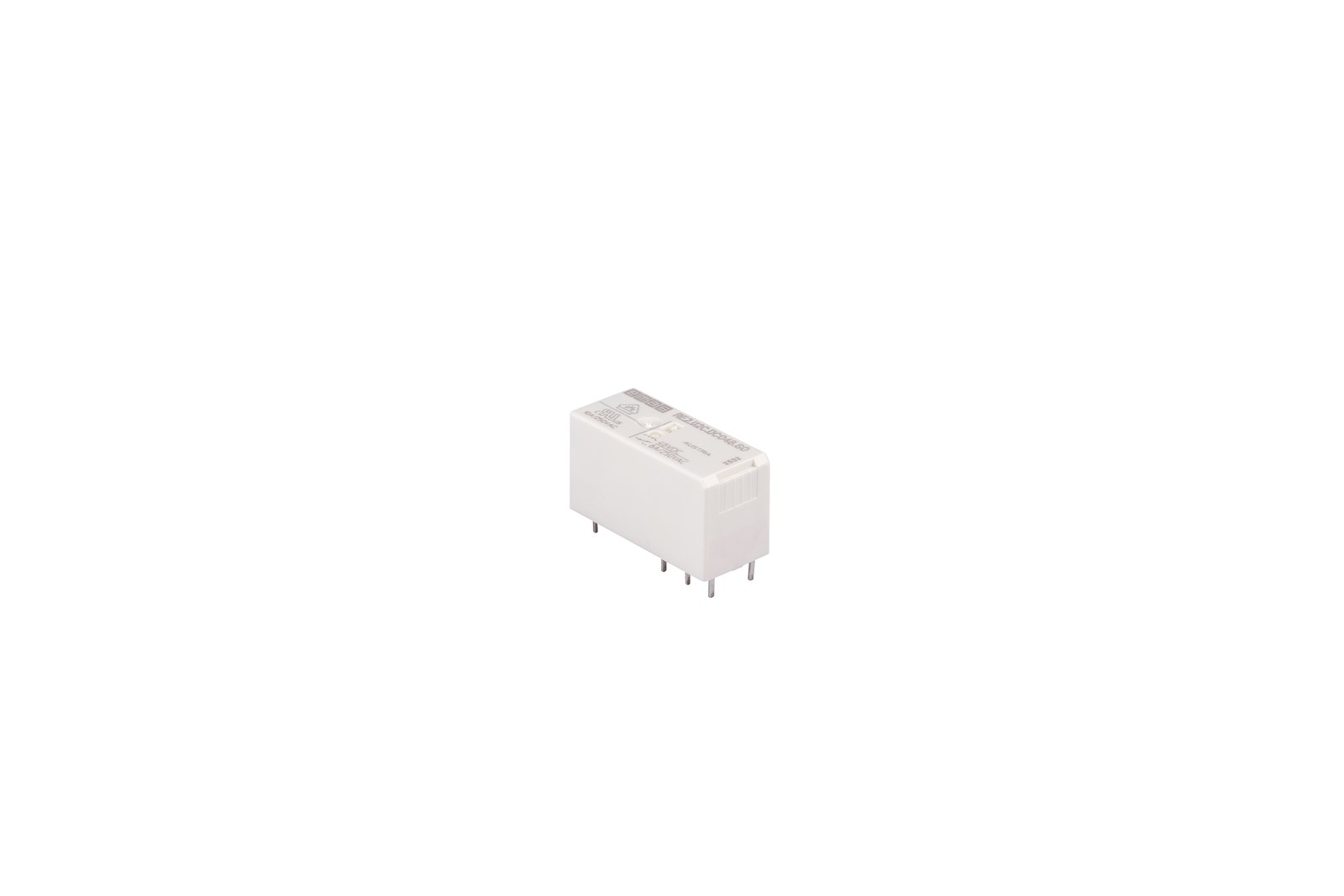

RE2 Series 2CO 8Pin 8A PCB 3.5x0.8mm FP 48VDC AgNi 90/10 5mm Pin Pitch PCB Power Relay

Product Code
RE2.U2C.DC048.S0
Standard
TS EN 61810-1
Certificate
UL VDE
Downloads
  • Flux Proof
  • High mechanical and electrical endurance for continuous operation
  • Compact design ideal for panel builders and machine manufacturers
  • Modüler konsept soket, röle, modül
  • Compatible with standard relay sockets
  • Exceptional performance even in demanding industrial environments
  • Application: Panel Board, Mechanical engineering, machine industry
RE2 Series 2CO 8Pin 8A PCB 3.5x0.8mm FP 48VDC AgNi 90/10 5mm Pin Pitch PCB Power Relay
RE2 Series 2CO 8Pin 8A PCB 3.5x0.8mm FP 48VDC AgNi 90/10 5mm Pin Pitch PCB Power Relay
RE2 Series 2CO 8Pin 8A PCB 3.5x0.8mm FP 48VDC AgNi 90/10 5mm Pin Pitch PCB Power Relay
Product
PCB Power Relay
Serial
RE2 Series
Contact
2CO
Pin
8Pin
Contact Material
AgNi 90/10
Pin Pitch (mm)
5mm Pin Pitch
3.5x0.8mm
Connection Type
PCB
Operational Voltage
48VDC
Current (Ie)
8A
Voltage
250V AC
Usage Category
AC-1
Mechanical Life (Min Qty)
30000000
Electrical Life (Min Qty)
10000
Dielectric Strength (Body-Contact)
5.000 Vrms
Dielectric Strength (Contact-Contact)
1.000 Vrms
Operating Temperature
-40 / +85 °C
Pollution Degree
2
Protection Degree
FP
Weight (Net) (Gr)
13
