Product Details



RE2 Series 4CO 14Pin 6A Plug-in 6x2.2mm FP 230VAC AgNi 90/10 with LED 5mm Pin Pitch Power Relay RE2 Series 4CO 14Pin 6A Plug-in 6x2.2mm FP 230VAC AgNi 90/10 with LED 5mm Pin Pitch Power Relay RE2 Series 4CO 14Pin 6A Plug-in 6x2.2mm FP 230VAC AgNi 90/10 with LED 5mm Pin Pitch Power Relay

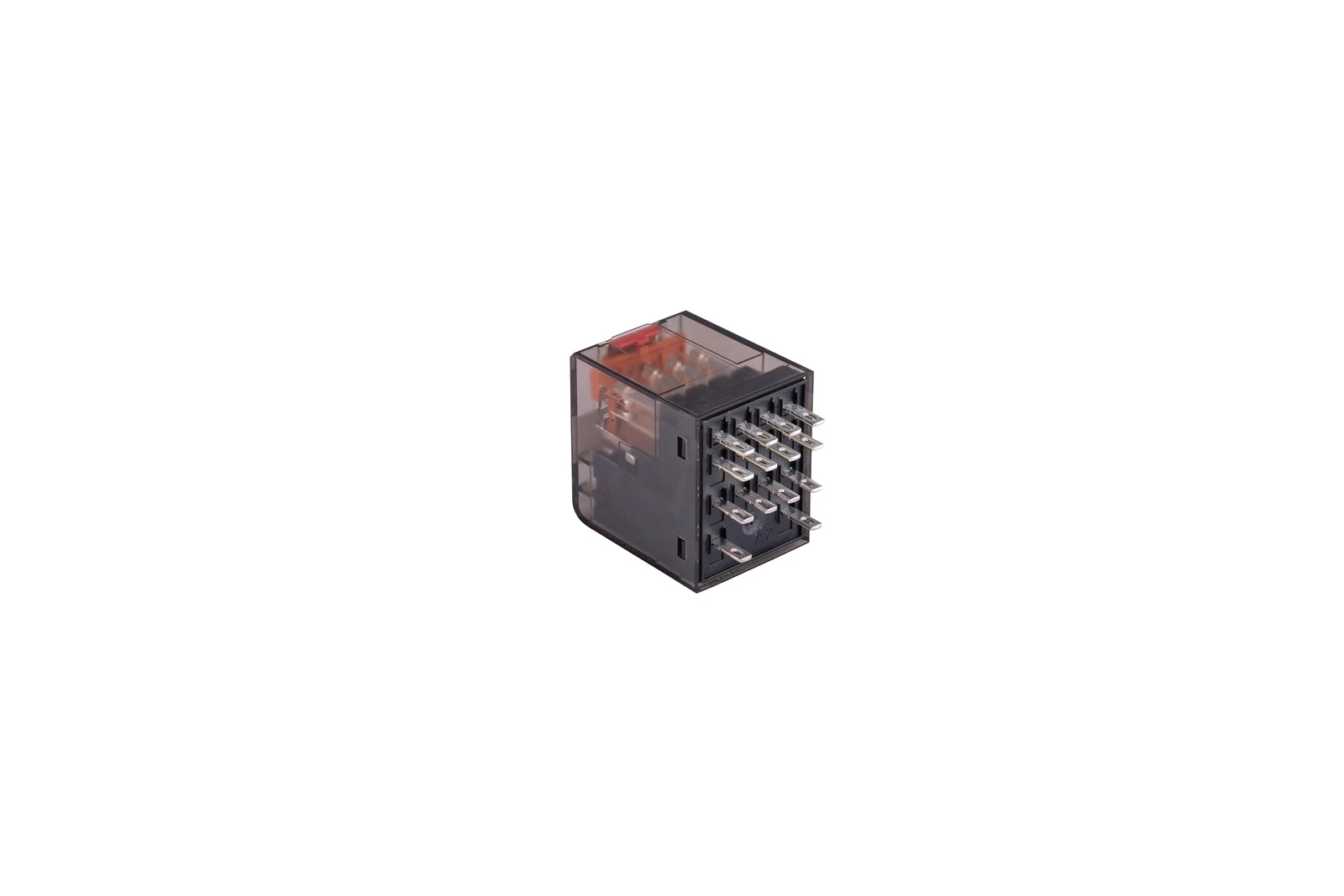

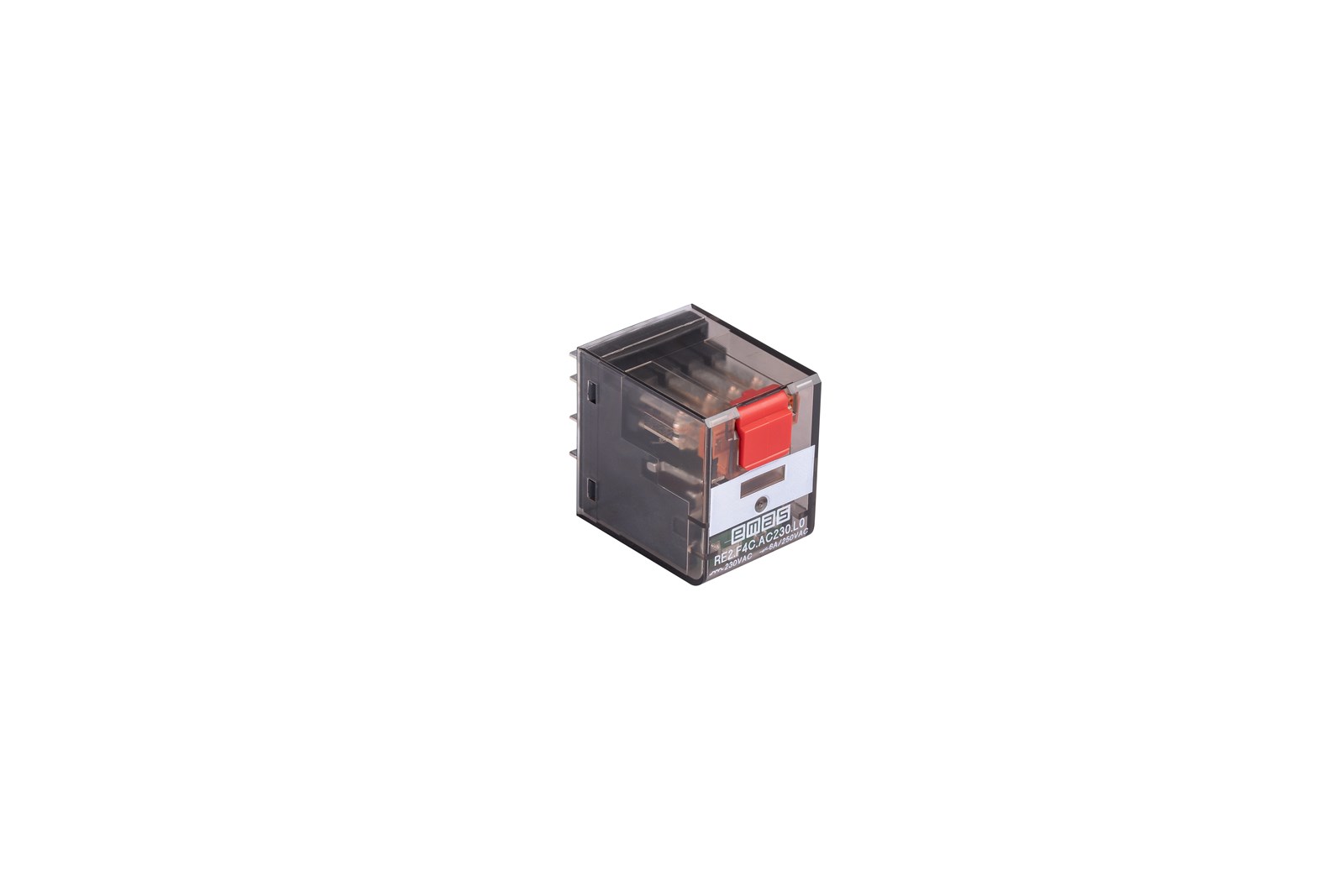

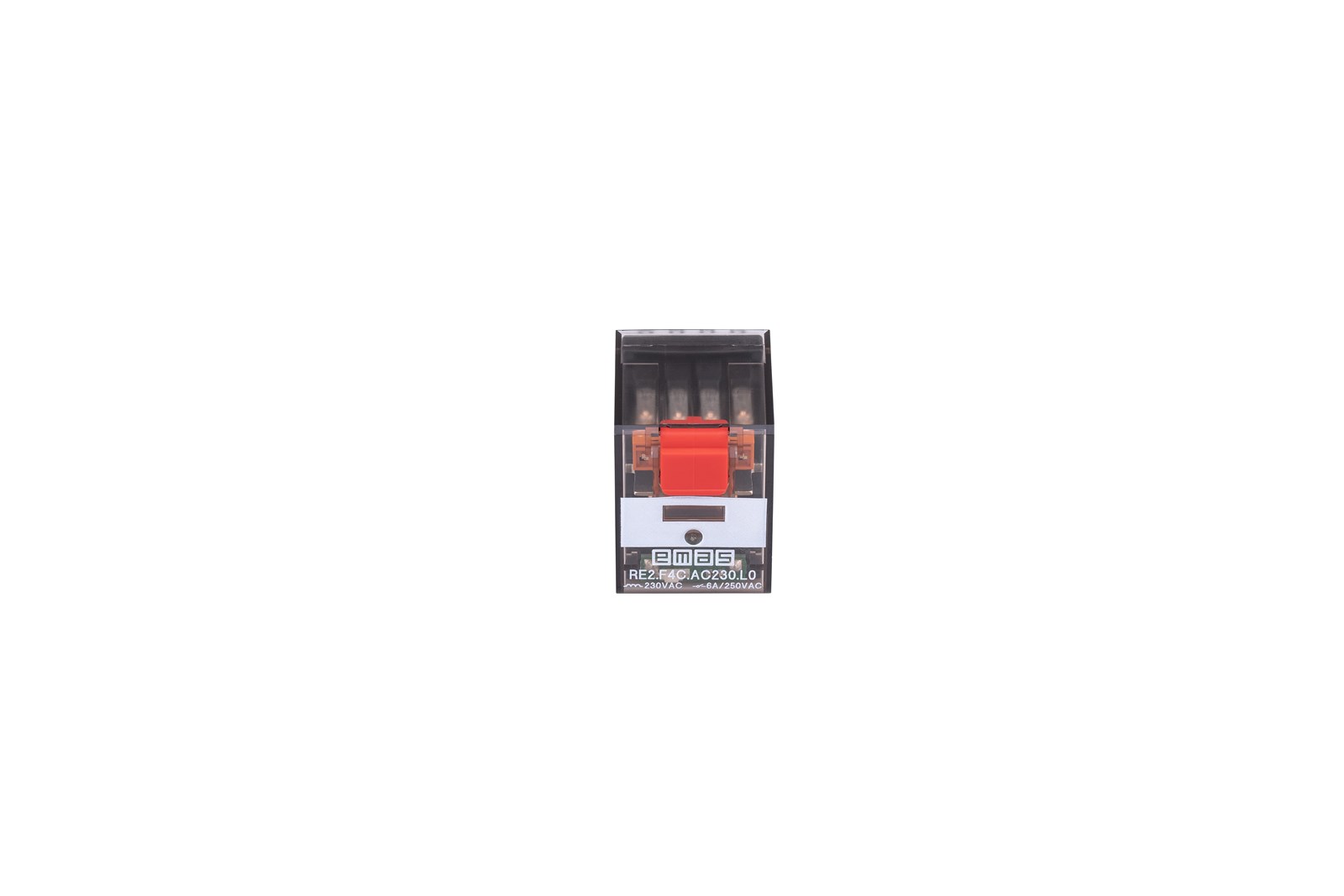

RE2 Series 4CO 14Pin 6A Plug-in 6x2.2mm FP 230VAC AgNi 90/10 with LED 5mm Pin Pitch Power Relay

Product Code
RE2.F4C.AC230.L0
Standard
TS EN 61810-1
Certificate
UL VDE
Downloads
  • Flux Proof
  • High mechanical and electrical endurance for continuous operation
  • Compact design ideal for panel builders and machine manufacturers
  • Transparent housing for easy visual inspection
  • Manual test button and mechanical indicator
  • Compatible with standard relay sockets
  • Exceptional performance even in demanding industrial environments
  • Sensitive Coil
  • Optional LED
  • Application: Machine industry, Elevator industry, Building management
RE2 Series 4CO 14Pin 6A Plug-in 6x2.2mm FP 230VAC AgNi 90/10 with LED 5mm Pin Pitch Power Relay
RE2 Series 4CO 14Pin 6A Plug-in 6x2.2mm FP 230VAC AgNi 90/10 with LED 5mm Pin Pitch Power Relay
RE2 Series 4CO 14Pin 6A Plug-in 6x2.2mm FP 230VAC AgNi 90/10 with LED 5mm Pin Pitch Power Relay
Product
Power Relay
Serial
RE2 Series
Contact
4CO
Pin
14Pin
Contact Material
AgNi 90/10
Pin Pitch (mm)
5mm Pin Pitch
Feature
with LED
6x2.2mm
Connection Type
Plug-in
Operational Voltage
230VAC
Current (Ie)
6A
Voltage
250V AC
Usage Category
AC-1
Mechanical Life (Min Qty)
20000000
Electrical Life (Min Qty)
100000
Dielectric Strength (Body-Contact)
2.500 Vrms
Dielectric Strength (Contact-Contact)
1.200 Vrms
Operating Temperature
-40 / +70 °C
Pollution Degree
2
Protection Degree
FP
Weight (Net) (Gr)
30
