Product Details

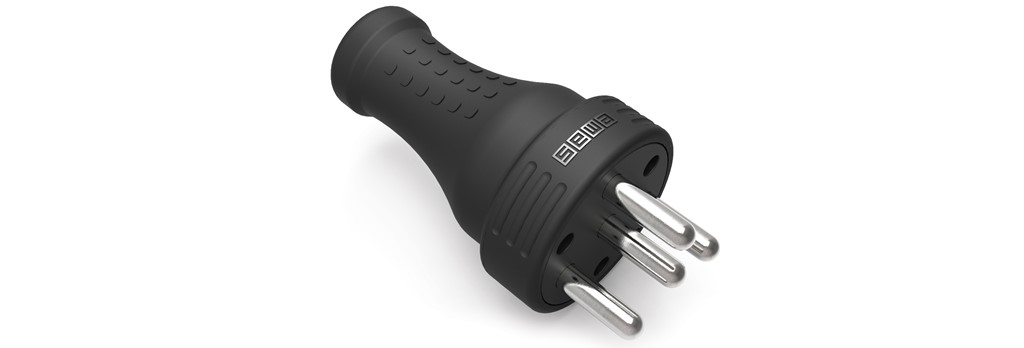

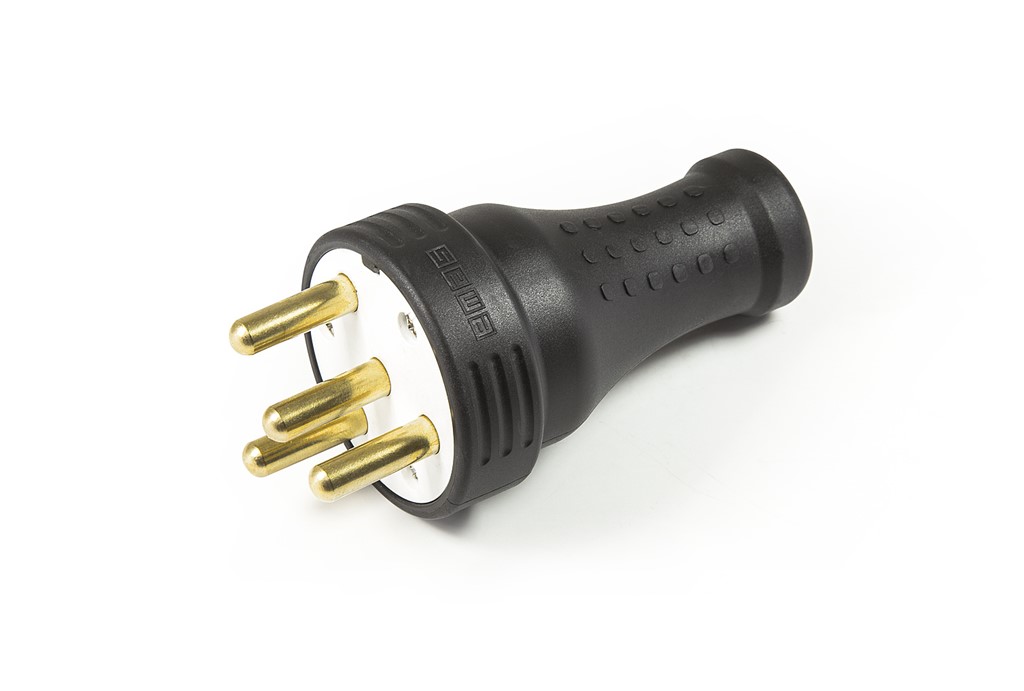

3P+E Extension Type Socket 25A Kauçuk Fiş Priz 3P+E Extension Type Socket 25A Kauçuk Fiş Priz

3P+E Extension Type Socket 25A Kauçuk Fiş Priz

Product Code
EKS325F
Standard
TS IEC 60884-1-A1+A2
Certificate
CE UKCA
Downloads
  • Monoblock durable rubber plastic housing
3P+E Extension Type Socket 25A Kauçuk Fiş Priz
3P+E Extension Type Socket 25A Kauçuk Fiş Priz
Operating Current
25A
Product
Kauçuk Fiş Priz
Type
Extension Type Socket
Contact
3P+E
Usage Category
AC15
Mechanical Life (Min Qty)
≥ 5.000
Electrical Life (Min Qty)
≥ 1.000
Operating Frequency (On-Off/Hour)
Mech.240 Elec.120
Insulation Voltage (Ui)
690V
Impulse Withstand Voltage (Uimp)
2 kV
Dielectric Strength (Body-Contact)
1890V AC
Dielectric Strength (Contact-Contact)
2000V AC
Isolation Resistance
10 MΩ MİN. (500 V DC)
Operating Temperature
-40 / +80 °C
Pollution Degree
2
Protection Degree
IP44
Production Time
31.12.1899 00:00:00
Serial
EKS Series
