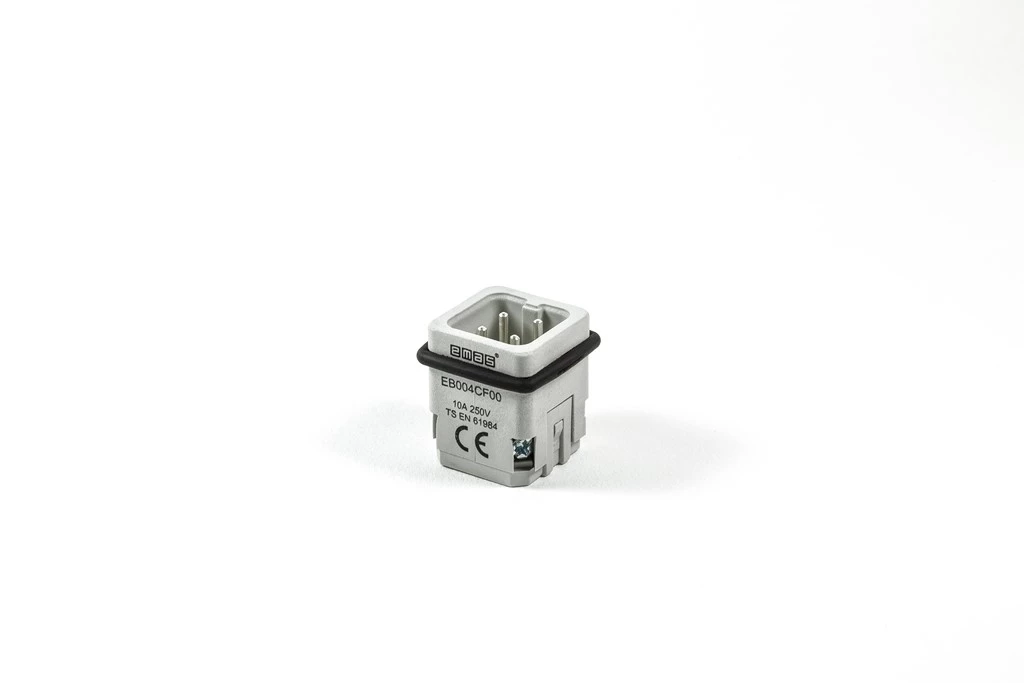

4 Poles Insert Plug 10A 1-4 Multipole

4 Poles Insert Plug 10A 1-4 Multipole

Product Code
EB004CF00
Standard
TS EN 61984
Certificate
CE SEPRO TSE UKCA
Downloads
  • Wide product variety
  • IP65 in closed position
  • Universal inserts
  • Easy cabling
  • Different locking types
  • Powdercoated metal housing
4 Poles Insert Plug 10A 1-4 Multipole
Print
1-4
Operating Current
10A
Product
Multipole
Type
Insert Plug
Contact
4 Poles
Usage Category
AC15
Mechanical Life (Min Qty)
≥ 500
Electrical Life (Min Qty)
≥ 100
Operating Frequency (On-Off/Hour)
Mech.240 Elec.120
Insulation Voltage (Ui)
690V
Impulse Withstand Voltage (Uimp)
6 kV
Dielectric Strength (Body-Contact)
1890V AC
Dielectric Strength (Contact-Contact)
3000V AC
Isolation Resistance
10 MΩ MİN. (500 V DC)
Operating Temperature
-40 / +125 °C
Pollution Degree
1
Production Time
31.12.1899 00:00:00
Serial
EB Series
