Product Details

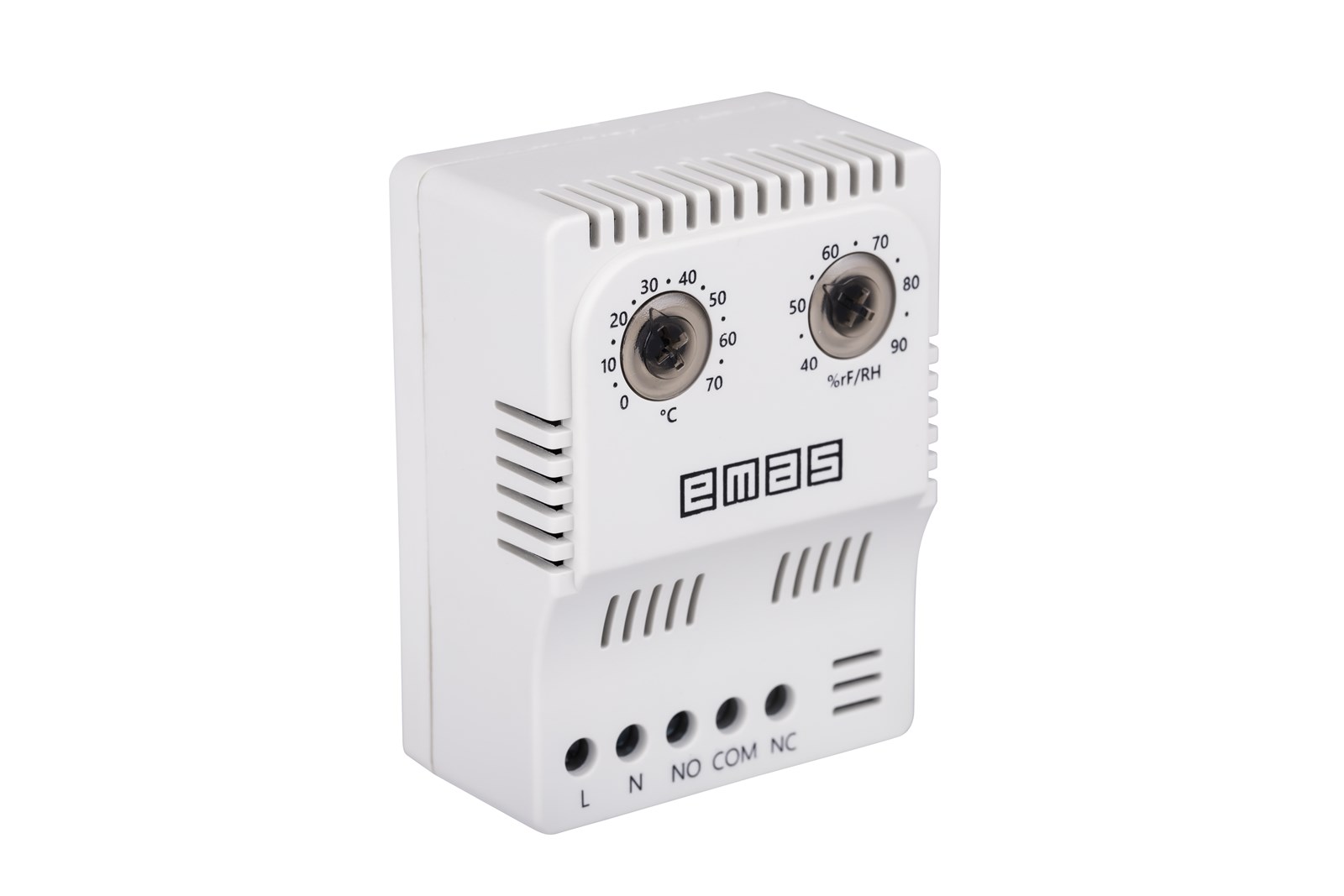

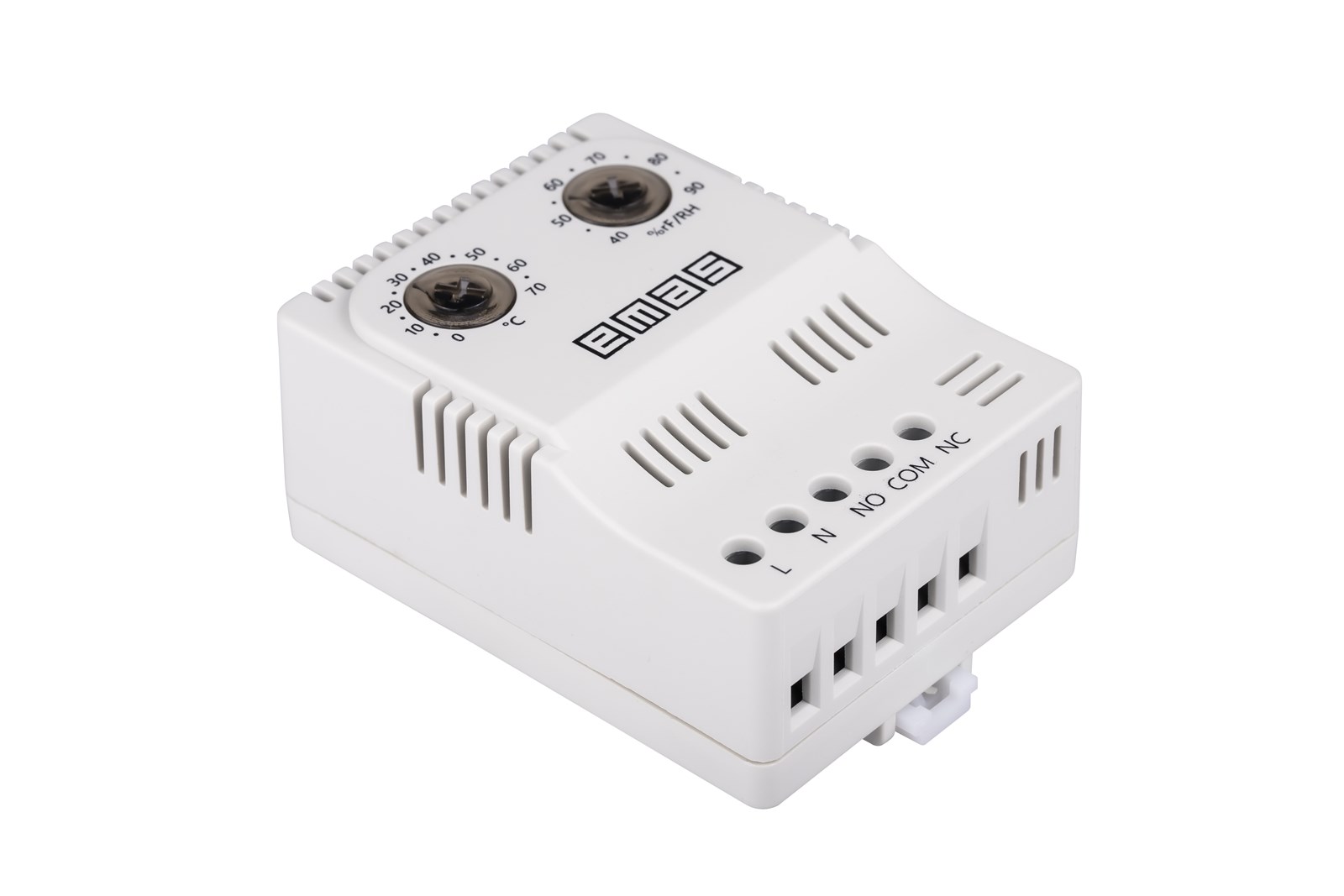

1NO +1NC Double White PHTE Series Hygrostate + Thermostat 1NO +1NC Double White PHTE Series Hygrostate + Thermostat

1NO +1NC Double White PHTE Series Hygrostate + Thermostat

Product Code
PHTE124
Standard
TS EN 60730-2-9
Certificate
CE UKCA
Downloads
  • DIN rail mountable
1NO +1NC Double White PHTE Series Hygrostate + Thermostat
1NO +1NC Double White PHTE Series Hygrostate + Thermostat
Product
Hygrostate + Thermostat
Serial
PHTE Series
Contact
1NO +1NC
Feature
Double
Color
White
Current (Ie)
10 A (230V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
50000
Electrical Life (Min Qty)
50000
Operating Frequency (On-Off/Hour)
Mech. 900 Elec. 900
Insulation Voltage (Ui)
300V
Dielectric Strength (Body-Contact)
1.000V AC
Dielectric Strength (Contact-Contact)
1.000V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP20
Contact Material
AgNi
Cable Section
1-2.5 mm²
Screw Torque
1,5 Nm
1 kA
