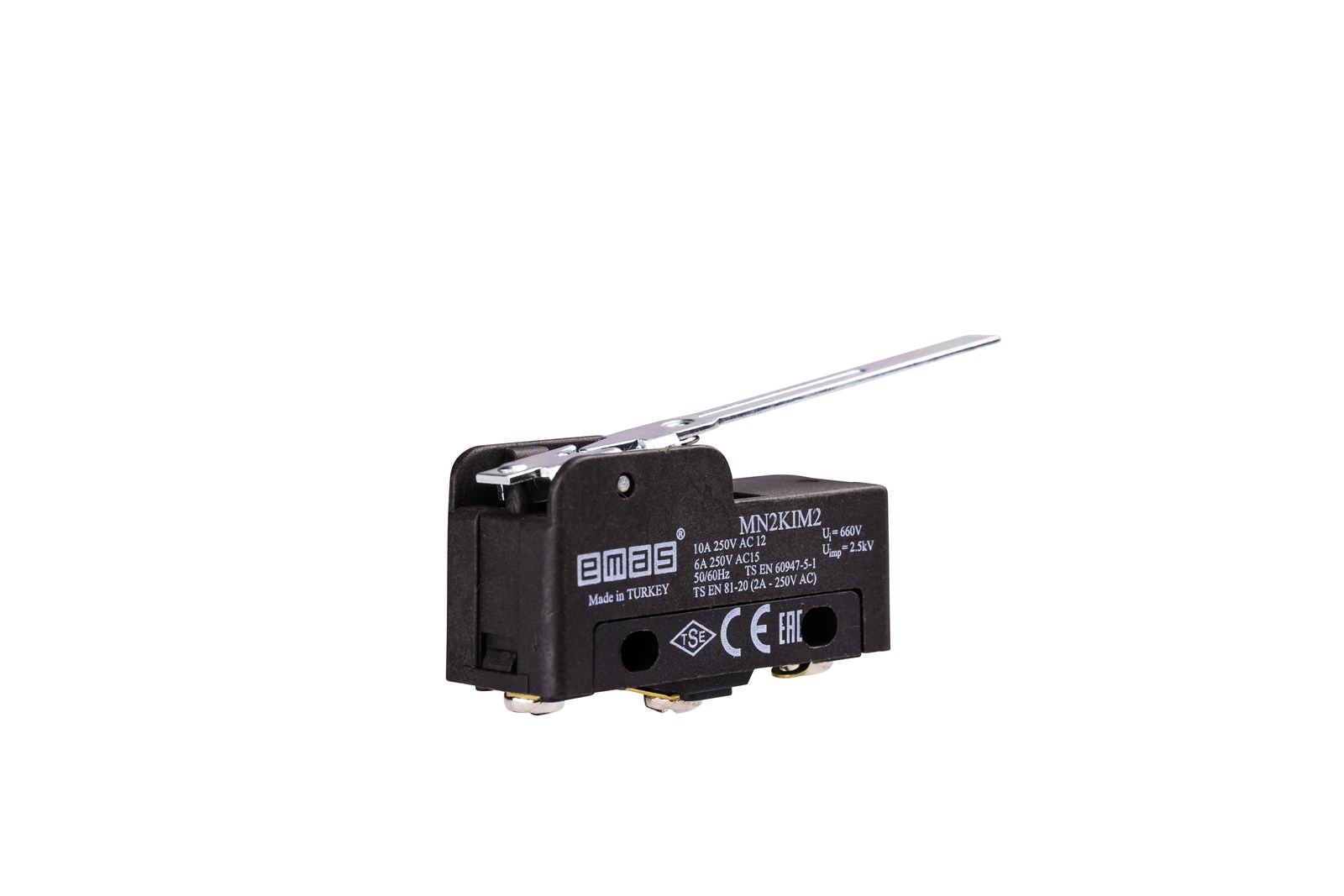

Metal Long Lever 1CO MN2 Series Plastic Mini Switch
Product Code
MN2KIM2
Standard
TS EN 60947-5-1
Certificate
Downloads
.jpg?format=webp)
Actuator
Long Lever
Actuator Material
Metal
Serial
MN2 Series
Short Circuit Breaking Capacity (Ics)
1 kA
Screw Torque
1,5 Nm
Cable Section
1-2.5 mm²
Contact Material
AgNi
Protection Degree
IP20 (IP40 Koruma Kapaklı)
Pollution Degree
3
Operating Temperature
-25 / +80 °C
Isolation Resistance
10 MΩ min. (500V DC)
Dielectric Strength (Contact-Contact)
1.890V AC
Dielectric Strength (Body-Contact)
1.890V AC
Impulse Withstand Voltage (Uimp)
2.5 kV
Insulation Voltage (Ui)
660V
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1200
Electrical Life (Min Qty)
100000
Mechanical Life (Min Qty)
500000
Usage Category
AC15
Current (Ie)
6 A (250V AC)
Contact
1CO
Product
Plastic Mini Switch
