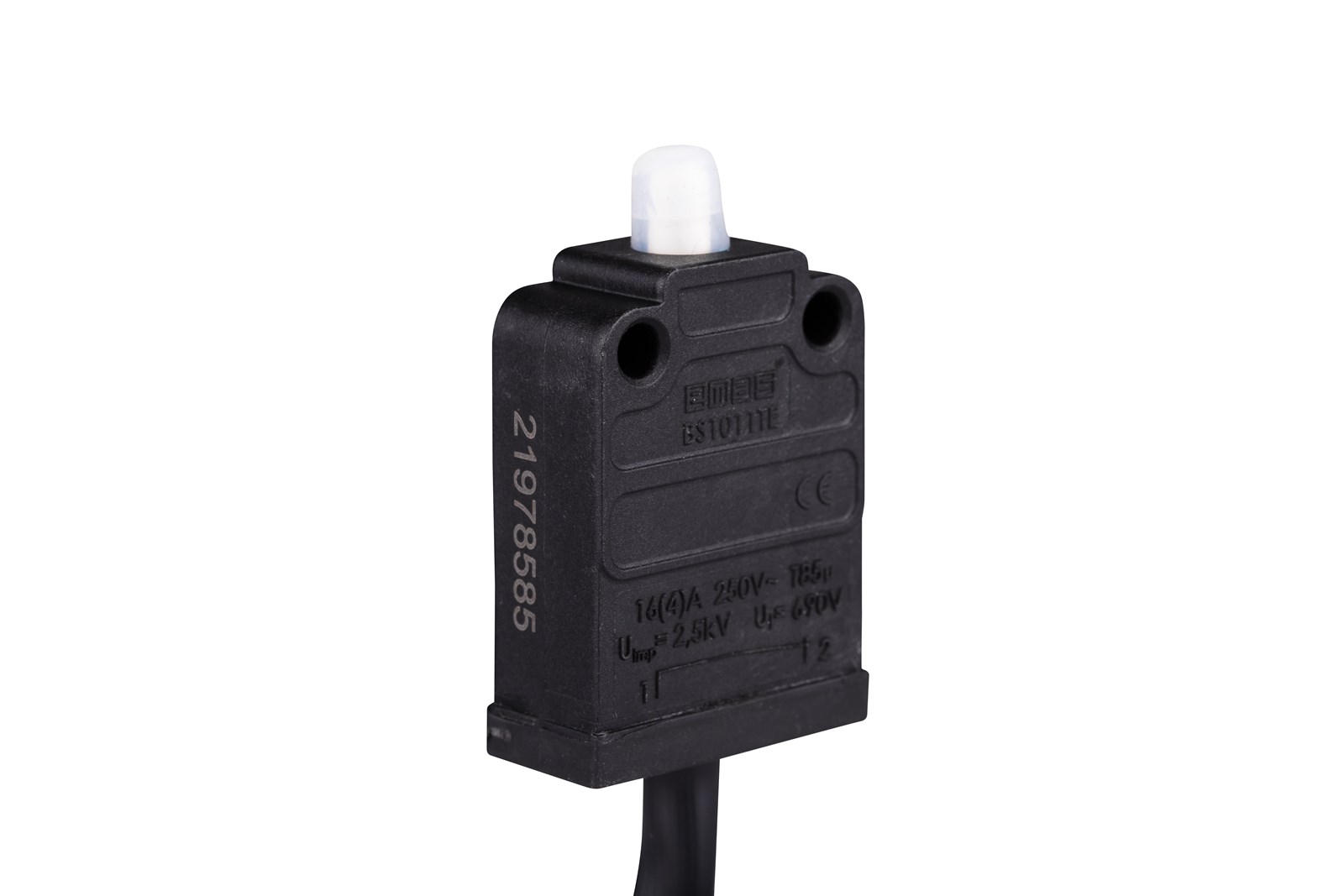

Snap Action 1NC with Etange 1m Cable BS Series Button Switch
Product Code
BS1011TX1
Standard
TS EN 60947-5-1
VDE 0660
Certificate
Downloads
.jpg?format=webp)
Product
Button Switch
Feature
with Etange
Contact
1NC
Cable
1m Cable
Current (Ie)
6 A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
1000000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 900
Insulation Voltage (Ui)
690V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
1.890V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP67
Contact Material
AgNi
Cable Section
1 M KABLO 2*1 mm²
Short Circuit Breaking Capacity (Ics)
1 kA
Serial
BS Series
Action
Snap Action
