  5. Snap Action 1NO BS Series Button Switch

Product Details



Snap Action 1NO BS Series Button Switch Snap Action 1NO BS Series Button Switch

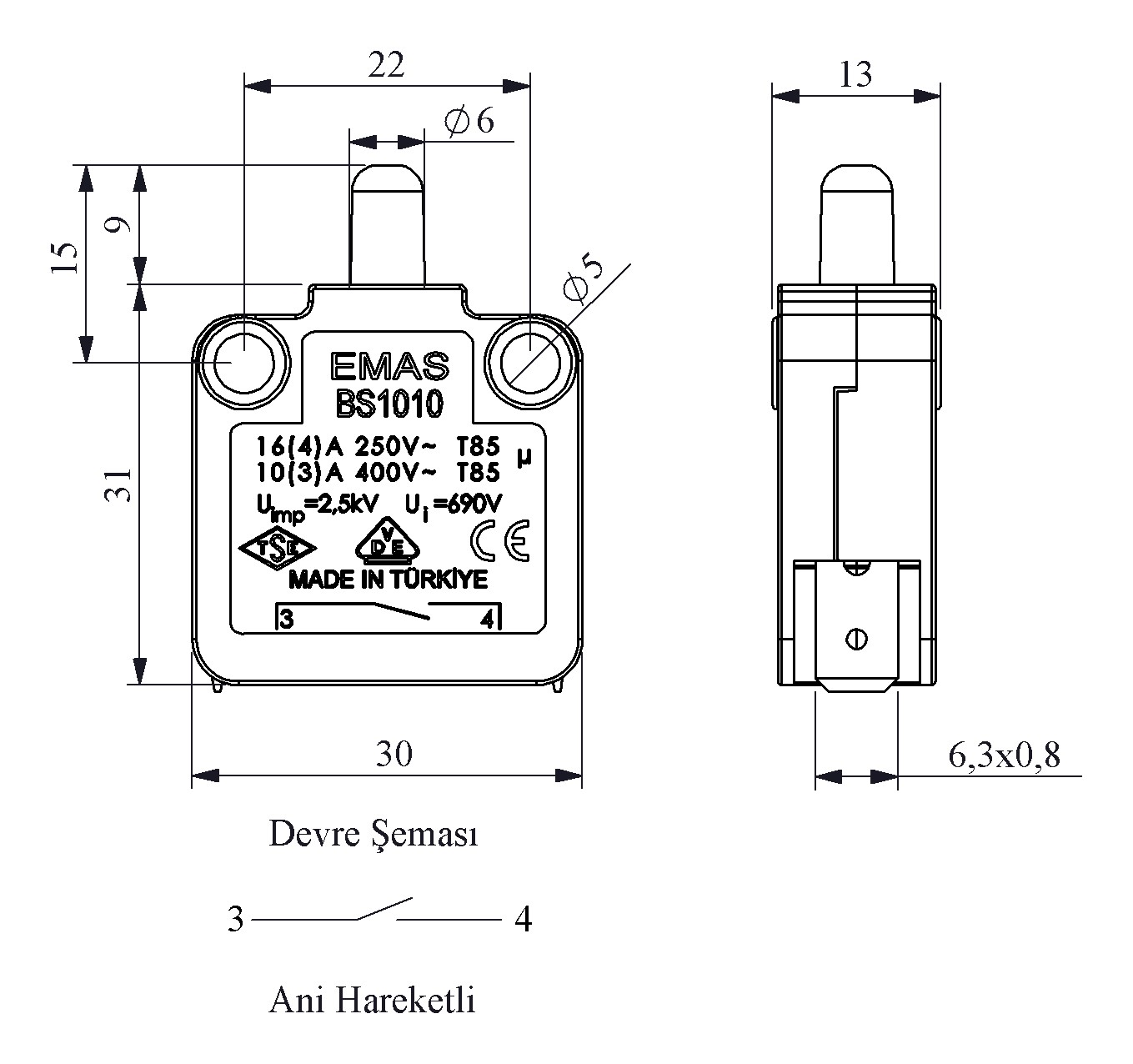

Snap Action 1NO BS Series Button Switch

Product Code
BS1010
Standard
TS EN 60947-5-1 VDE 0660
Certificate
CE EAC SEPRO TSE UKCA
Downloads
  • Maximum product reliability with V0 material
  • Snap or slow action
Snap Action 1NO BS Series Button Switch
Snap Action 1NO BS Series Button Switch
Product
Button Switch
Contact
1NO
Current (Ie)
6 A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
1000000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 900
Insulation Voltage (Ui)
690V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
1.890V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP40
Contact Material
AgNi
Cable Section
Terminal 6,3*0,8 mm
Short Circuit Breaking Capacity (Ics)
1 kA
Serial
BS Series
Action
Snap Action
