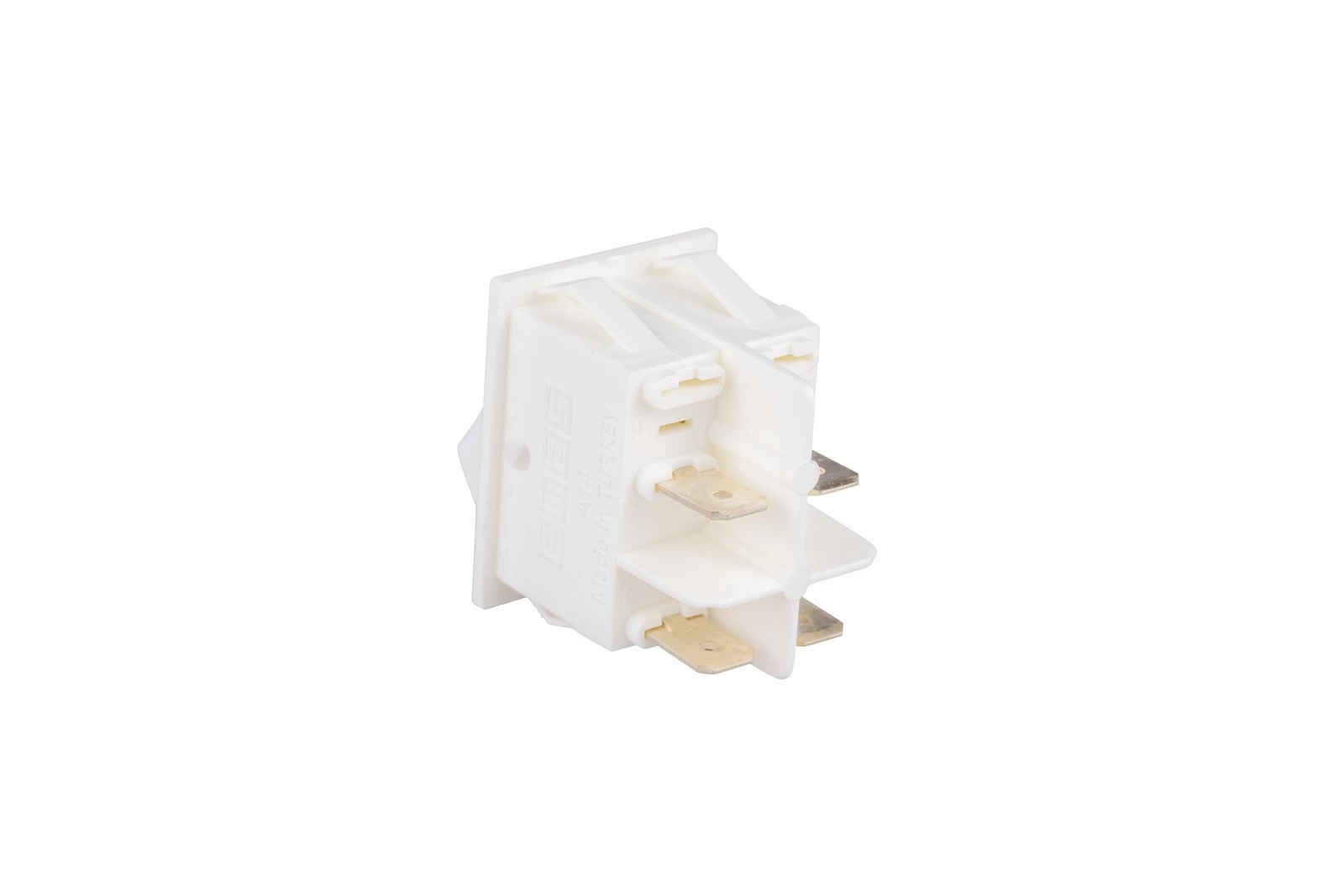

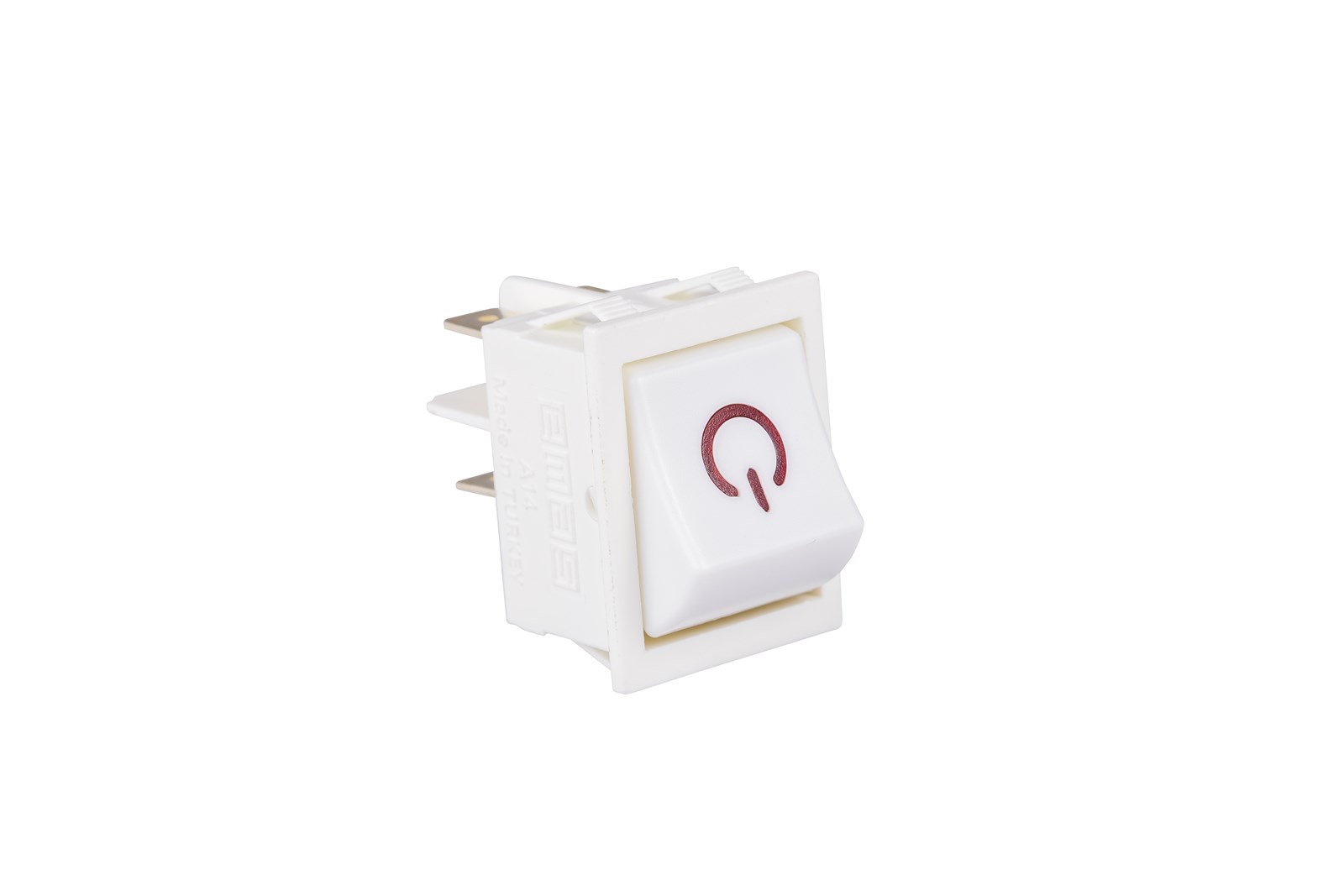

  5. 30*22mm White Body 2NO with Illumination with Terminal with Red (On-Off) Symbol White A14 Series Rocker Switch

Product Details



30*22mm White Body 2NO with Illumination with Terminal with Red (On-Off) Symbol White A14 Series Rocker Switch 30*22mm White Body 2NO with Illumination with Terminal with Red (On-Off) Symbol White A14 Series Rocker Switch

30*22mm White Body 2NO with Illumination with Terminal with Red (On-Off) Symbol White A14 Series Rocker Switch

Product Code
A14W1BP1K
Standard
TS EN 61058-1
Certificate
CE EAC SEPRO TSE UKCA
Downloads
  • With or w/o illumination options
  • Four different color options
  • Black or white body
  • Snap action
30*22mm White Body 2NO with Illumination with Terminal with Red (On-Off) Symbol White A14 Series Rocker Switch
30*22mm White Body 2NO with Illumination with Terminal with Red (On-Off) Symbol White A14 Series Rocker Switch
Connection Type
with Terminal
Product
Rocker Switch
Feature
with Red (On-Off) Symbol
Contact
2NO
Color
White
Illumination
with Illumination
Dia
30*22mm
Current (Ie)
16 A (250V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
50000
Electrical Life (Min Qty)
50000
Operating Frequency (On-Off/Hour)
Mech.900 Elec.900
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-25 / +80 °C
Pollution Degree
3
Protection Degree
IP20
Contact Material
AgNi
Cable Section
Terminal 6,3*0,8 mm
Short Circuit Breaking Capacity (Ics)
1 kA
Serial
A14 Series
Body Color
White Body
