Product Details

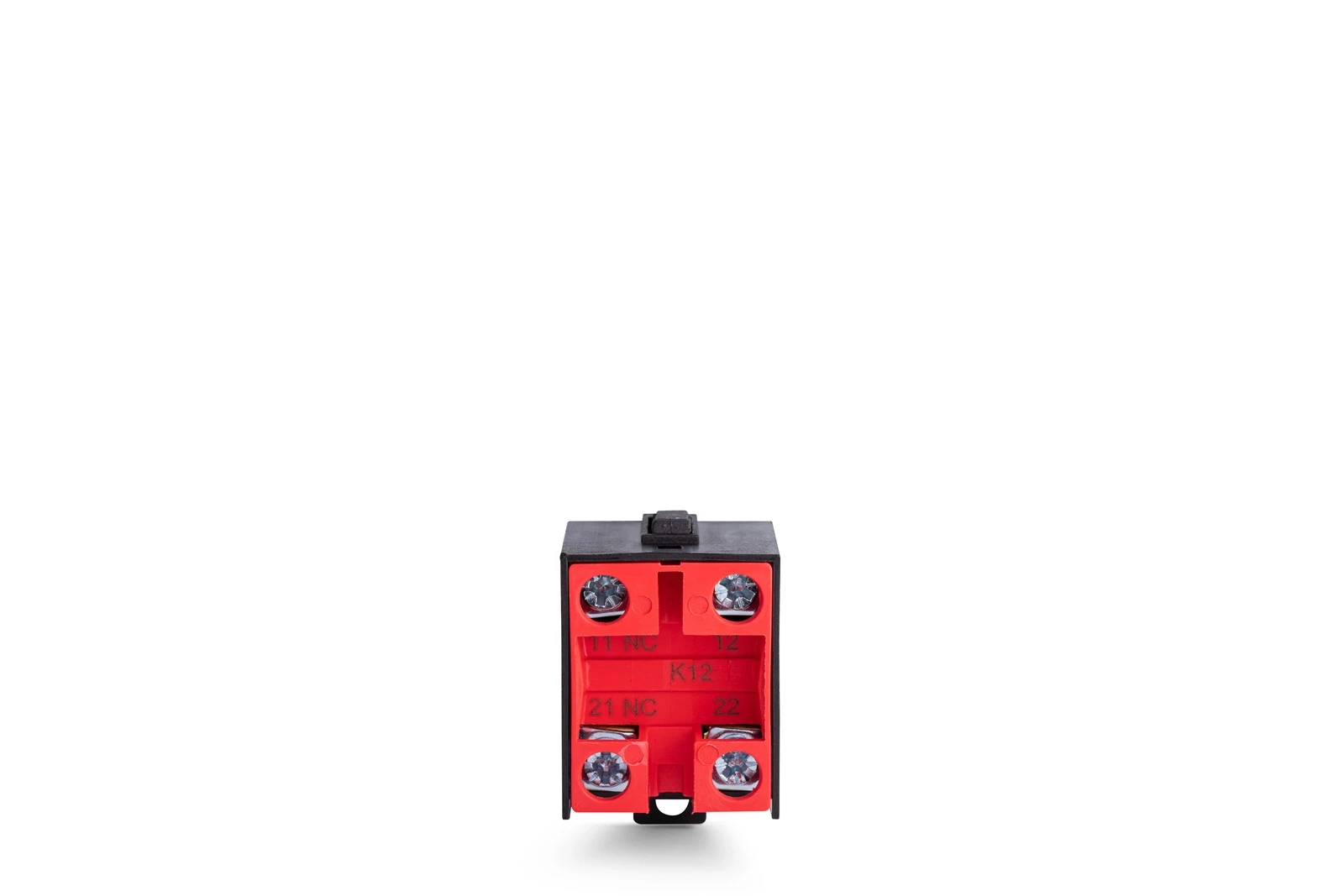

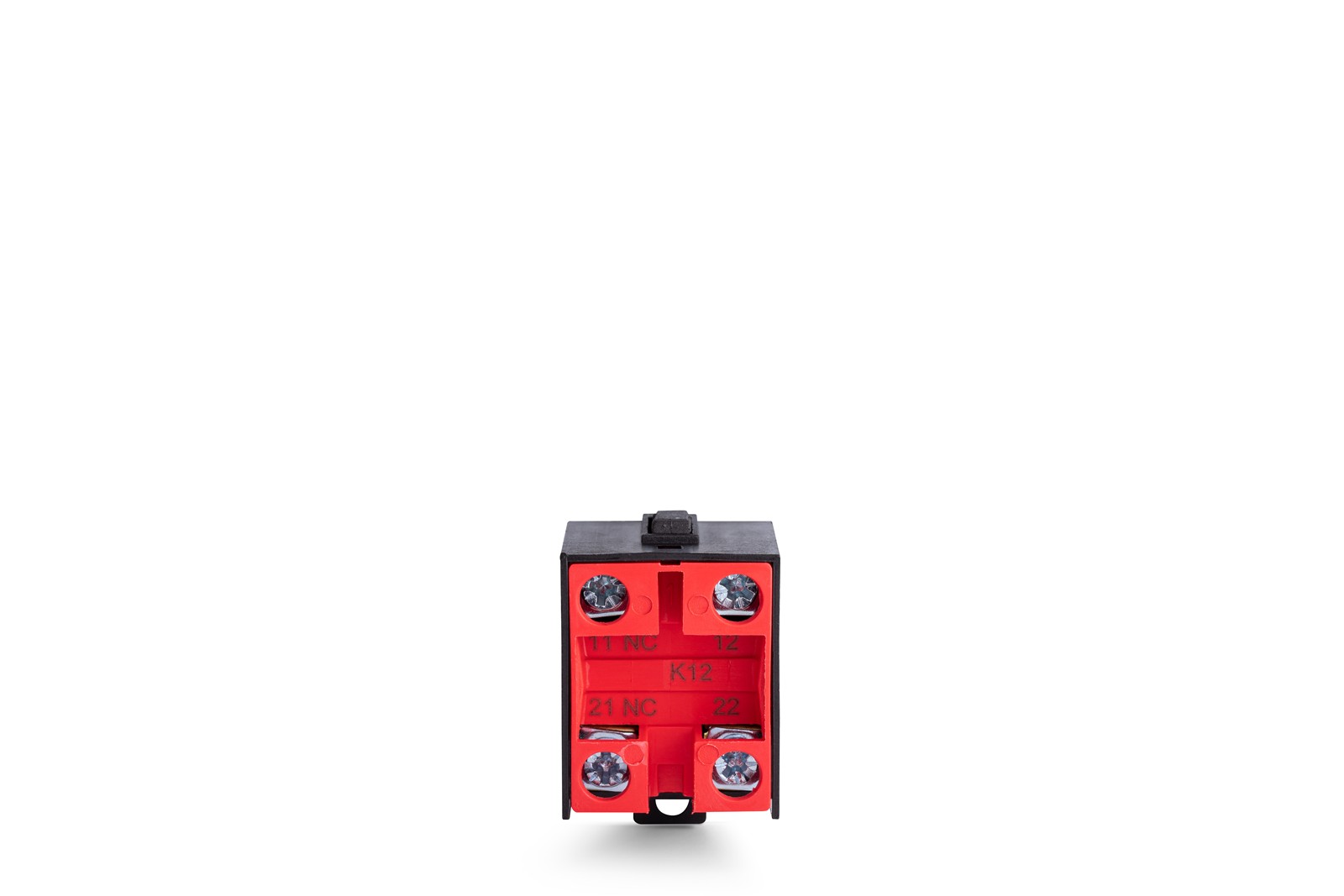

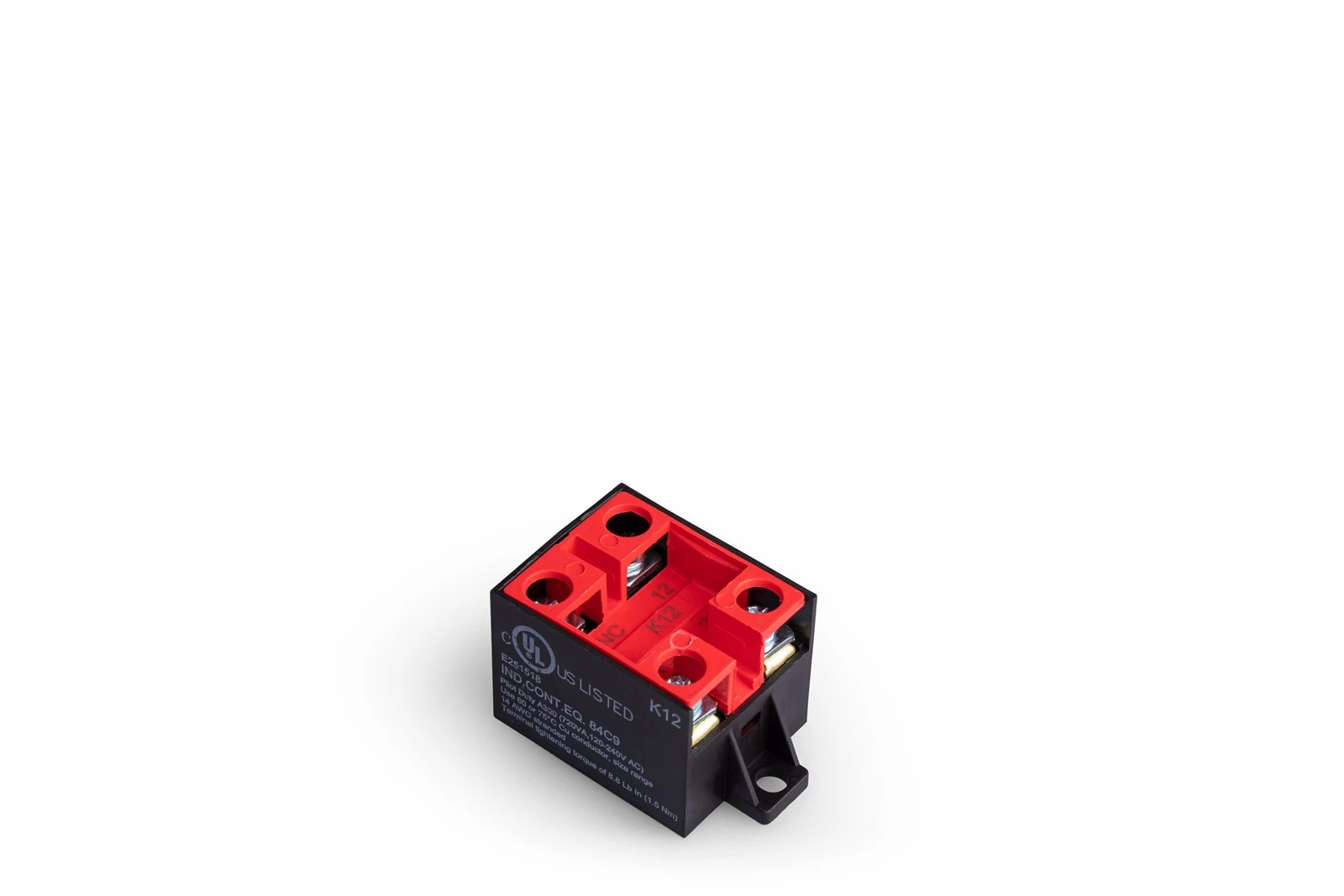

Spare Part Snap Action 2NC Contact Block Spare Part Snap Action 2NC Contact Block

Spare Part Snap Action 2NC Contact Block

Product Code
LK20K12
Standard
TS EN 60947-5-1 UL 508 VDE 0660
Certificate
CE EAC UKCA
Downloads
Spare Part Snap Action 2NC Contact Block
Spare Part Snap Action 2NC Contact Block
Product
Contact Block
Serial
Spare Part
Related Product
L1-L2-L3-L5-L51-L52-L53-L54
Contact Action
Snap Action
Contact
2NC
Current (Ie)
3 A (240V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
10000000
Electrical Life (Min Qty)
1000000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1800
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
1.890V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ (500 V DC)
Operating Temperature
-25 / + 80 °C
Pollution Degree
3
Contact Material
AgNi
Cable Section
1-2.5 mm2
Screw Torque
1.5Nm
1 kA
