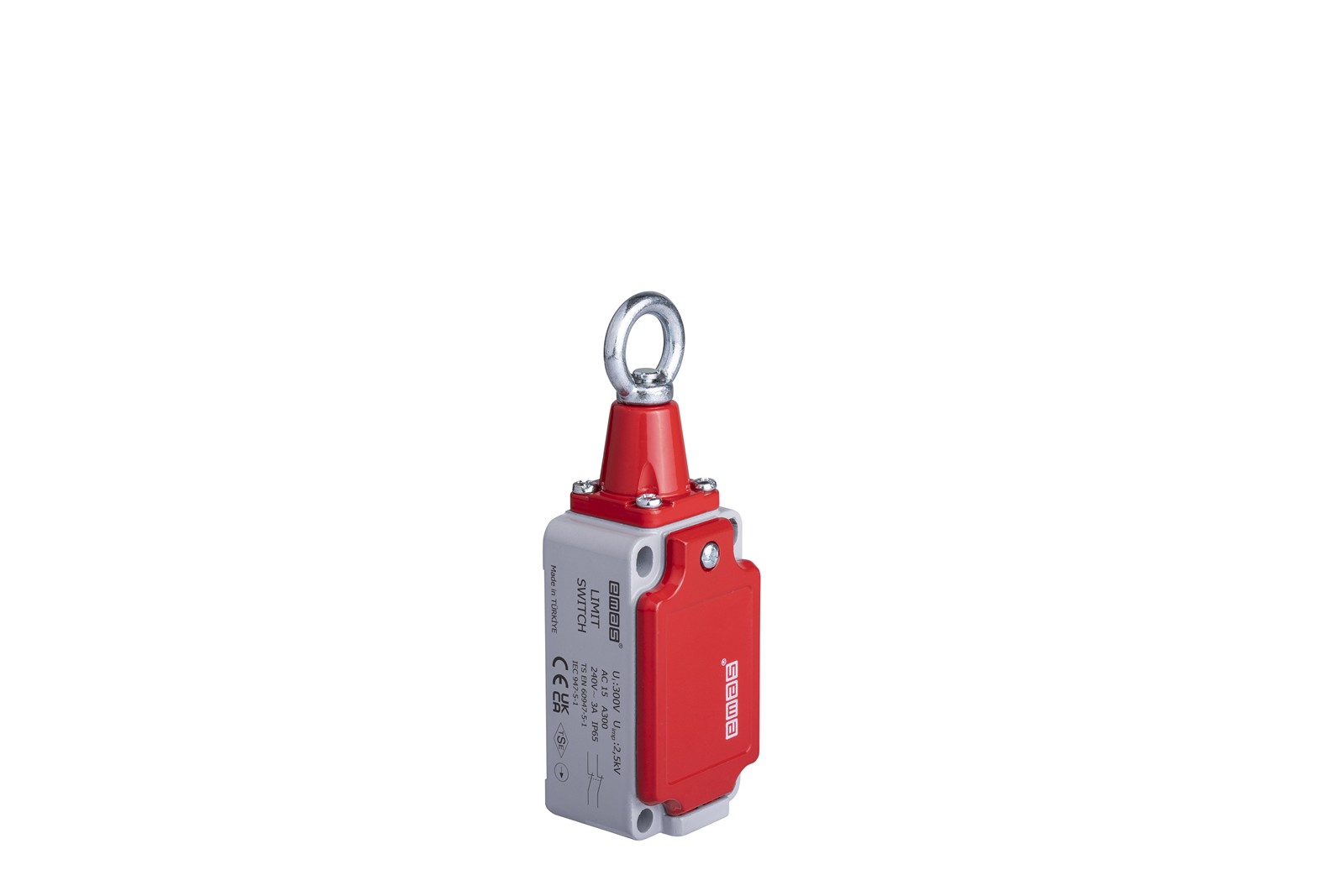

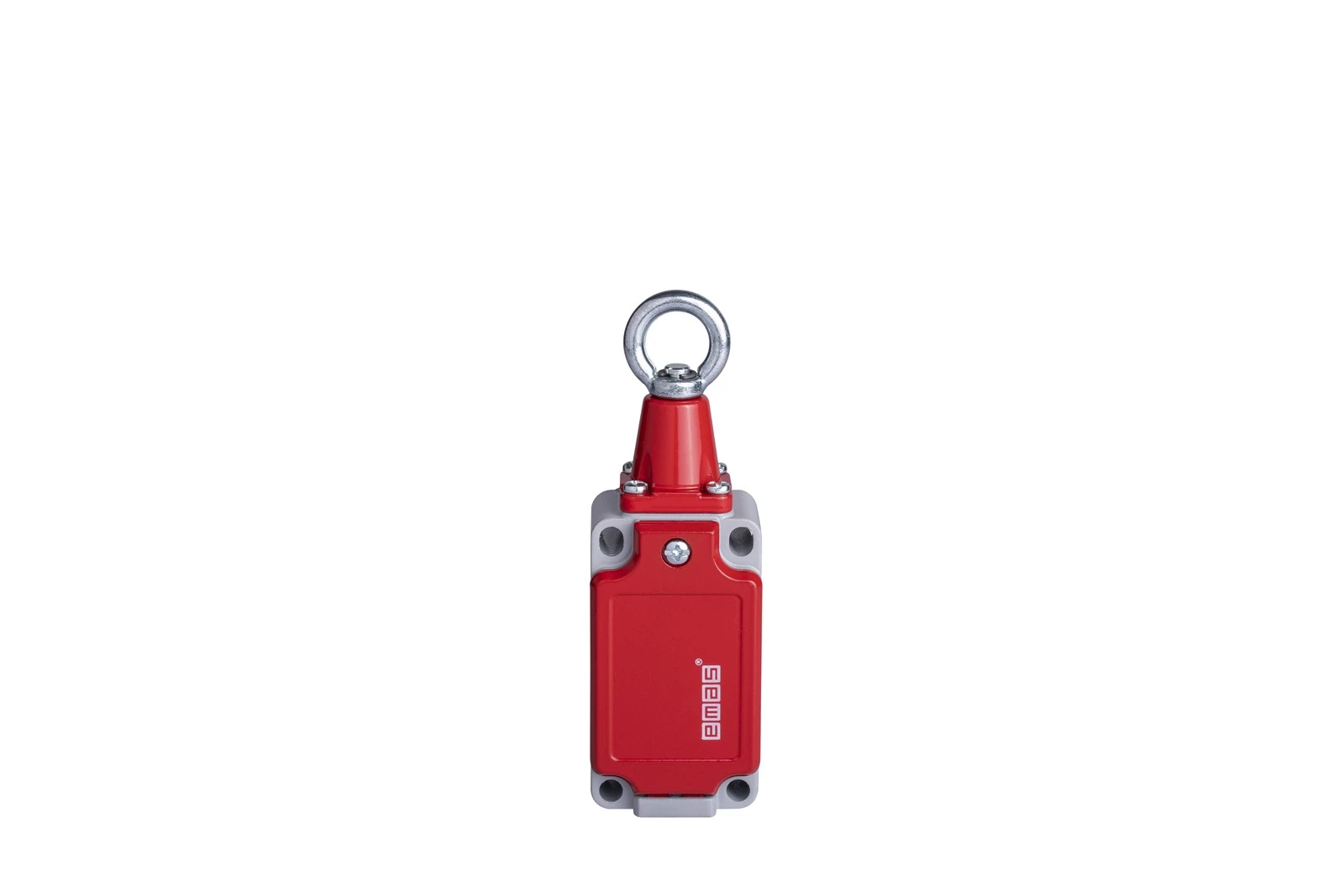

  5. L52 Metal Body Metal Rope Pull Safety Switch Snap Action 2NC Limit Switch

Product Details



L52 Metal Body Metal Rope Pull Safety Switch Snap Action 2NC Limit Switch L52 Metal Body Metal Rope Pull Safety Switch Snap Action 2NC Limit Switch

L52 Metal Body Metal Rope Pull Safety Switch Snap Action 2NC Limit Switch

Product Code
L52K12HUM111
Standard
TS EN 60947-5-1 UL 508 VDE 0660
Certificate
CE EAC SEPRO TSE UKCA
Certificate
(Contact Block)
TSE UL
Downloads
  • Metal Body and Cover
  • 1 cable entry suitable for PG13.5 or M20x1.5 optional gland
  • Changeable contact block
  • Different actuator options
L52 Metal Body Metal Rope Pull Safety Switch Snap Action 2NC Limit Switch
L52 Metal Body Metal Rope Pull Safety Switch Snap Action 2NC Limit Switch
Product
Limit Switch
Serial
L52 Metal Body
Actuator Material
Metal
Actuator
Rope Pull Safety Switch
Contact Action
Snap Action
Contact
2NC
Current (Ie)
3 A (240V AC)
Usage Category
AC15
Mechanical Life (Min Qty)
10000000
Electrical Life (Min Qty)
1000000
Operating Frequency (On-Off/Hour)
Mech. 3000 Elec. 1800
Insulation Voltage (Ui)
300 V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
1.890V AC
Dielectric Strength (Contact-Contact)
1.890V AC
Isolation Resistance
10 MΩ (500 V DC)
Operating Temperature
-25 / + 80 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1-2.0 mm2
Screw Torque
1.5Nm
1 kA
