Product Details

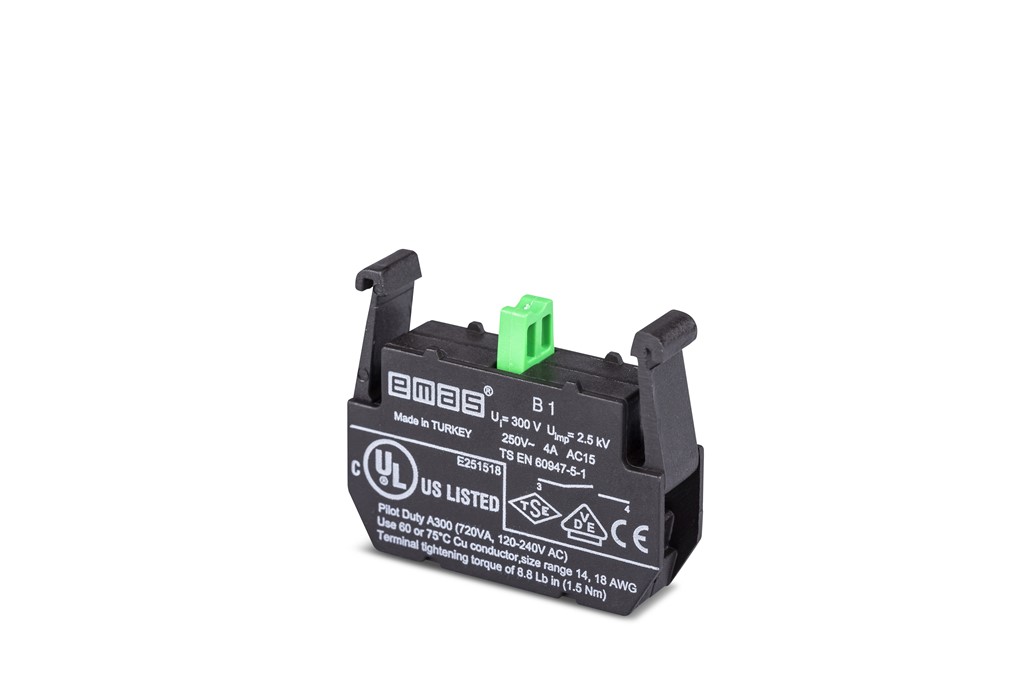

Spare Part 1NO Contact Block

Spare Part 1NO Contact Block

Product Code
B1
Standard
IEC 60947-5-1 TS EN 60947-5-1 UL 508 VDE 0660
Certificate
CE UKCA
Downloads
    Spare Part 1NO Contact Block
    Product
    Contact Block
    Contact
    1NO
    Current (Ie)
    4 A (250V AC)
    Usage Category
    AC 15
    Mechanical Life (Min Qty)
    500000
    Electrical Life (Min Qty)
    100000
    Operating Frequency (On-Off/Hour)
    Mech. 1200 Elec. 1200
    Insulation Voltage (Ui)
    300V
    Impulse Withstand Voltage (Uimp)
    2.5 kV
    Dielectric Strength (Body-Contact)
    2.500V AC
    Dielectric Strength (Contact-Contact)
    1.500V AC
    Isolation Resistance
    10 MΩ min. (500V DC)
    Operating Temperature
    -15 / + 80 °C
    Pollution Degree
    3
    Protection Degree
    IP50
    Contact Material
    AgNi
    Cable Section
    1.5-2.5 mm²
    Screw Torque
    1,5 Nm
    Short Circuit Breaking Capacity (Ics)
    1 kA
    Production Time
    31.12.1899 00:00:00
    Serial
    Spare Part
