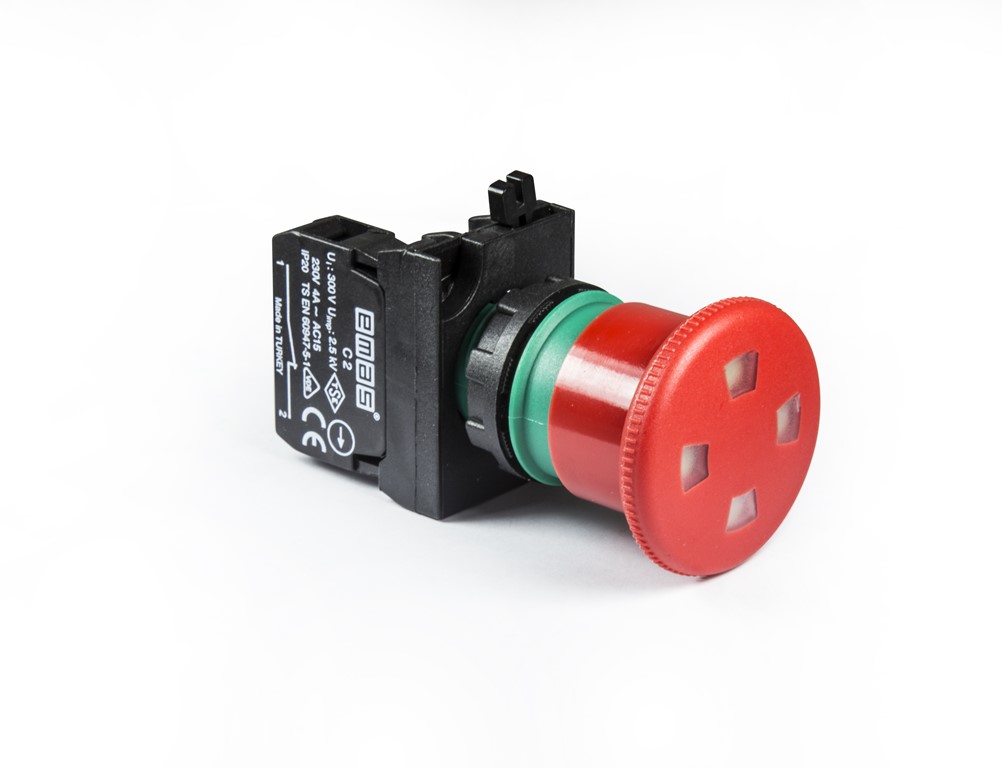

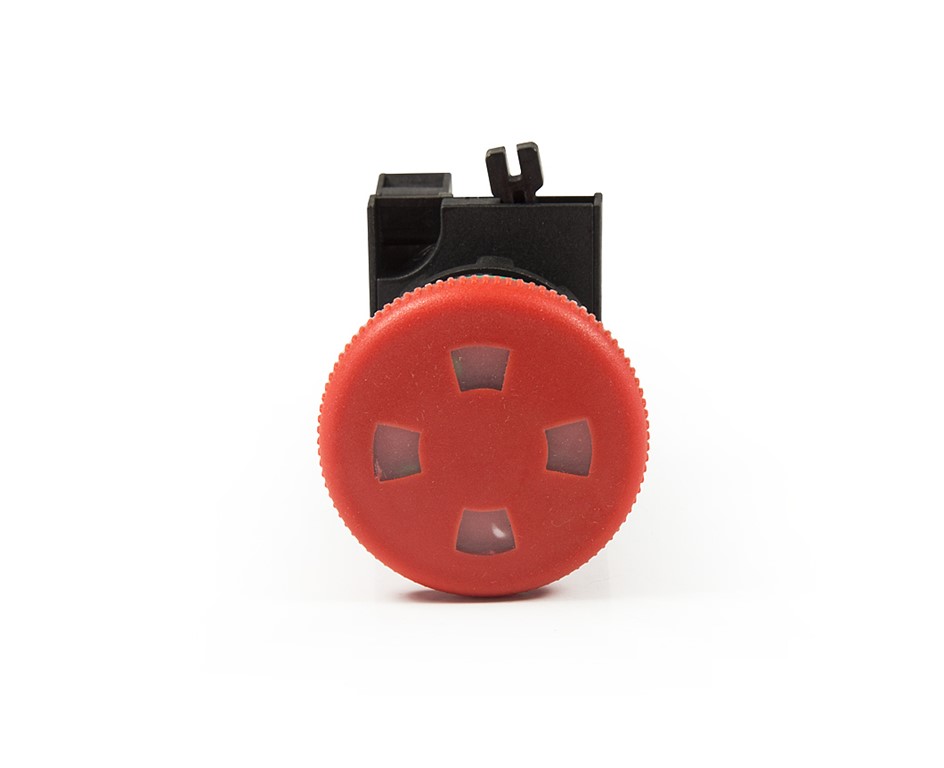

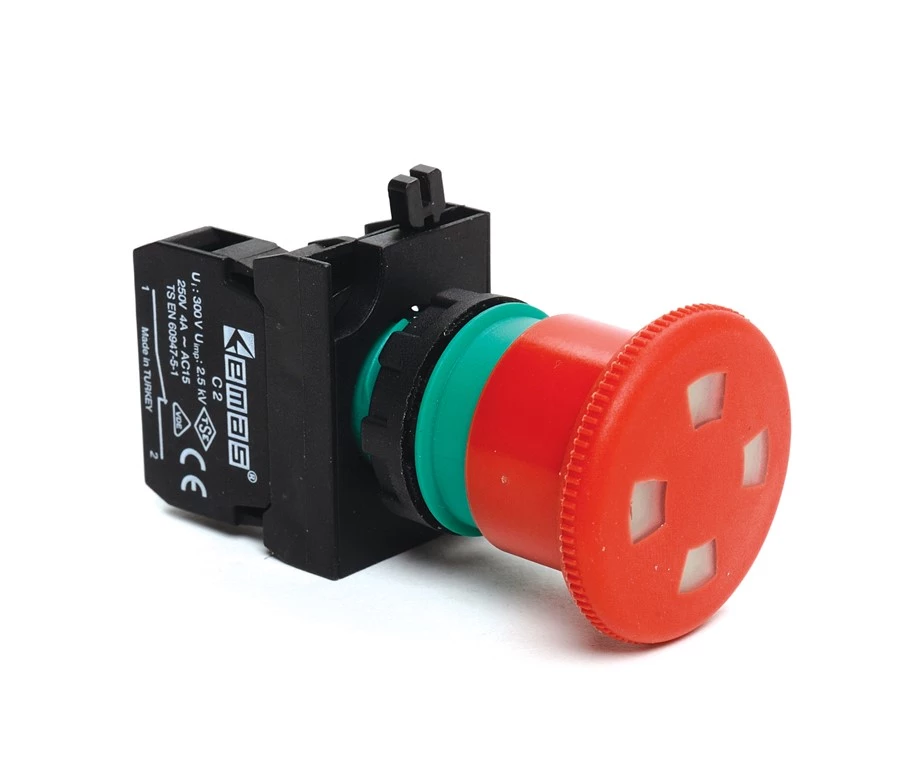

  5. CP Series Plastic 1NC Emergency 40 mm Pull to Release with Window Red 22 mm Control Unit

Product Details



CP Series Plastic 1NC Emergency 40 mm Pull to Release with Window Red 22 mm Control Unit CP Series Plastic 1NC Emergency 40 mm Pull to Release with Window Red 22 mm Control Unit CP Series Plastic 1NC Emergency 40 mm Pull to Release with Window Red 22 mm Control Unit

CP Series Plastic 1NC Emergency 40 mm Pull to Release with Window Red 22 mm Control Unit

Product Code
CP200EP
Standard
TS EN 60947-5-1 UL 508 VDE 0660 IEC 60947-5-1
Certificate
CE EAC SEPRO UKCA
Certificate
(Contact Block)
TSE UL VDE
Downloads
  • Non-flammable V0 PA6.6 contact blocks
  • Various illumination contact blocks availablity
  • Variety of products for all areas of application
  • IP65 protection from front side
CP Series Plastic 1NC Emergency 40 mm Pull to Release with Window Red 22 mm Control Unit
CP Series Plastic 1NC Emergency 40 mm Pull to Release with Window Red 22 mm Control Unit
CP Series Plastic 1NC Emergency 40 mm Pull to Release with Window Red 22 mm Control Unit
Product
Control Unit
Model
Emergency
Type
Pull to Release with Window
Contact
1NC
Color
Red
Dia
22 mm
Head Dia
40 mm
Current (Ie)
4 A (230V AC)
Usage Category
AC 15
Mechanical Life (Min Qty)
500000
Electrical Life (Min Qty)
100000
Operating Frequency (On-Off/Hour)
Mech. 1200 Elec. 1200
Insulation Voltage (Ui)
300V
Impulse Withstand Voltage (Uimp)
2.5 kV
Dielectric Strength (Body-Contact)
2.500V AC
Dielectric Strength (Contact-Contact)
1.500V AC
Isolation Resistance
10 MΩ min. (500V DC)
Operating Temperature
-15 / + 65 °C
Pollution Degree
3
Protection Degree
IP65
Contact Material
AgNi
Cable Section
1.5-2.5 mm2
Screw Torque
1,5 Nm
Short Circuit Breaking Capacity (Ics)
1 kA
Production Time
31.12.1899 00:00:00
Serial
CP Series Plastic
